5800mm
2480mm
2530mm
14.09㎡

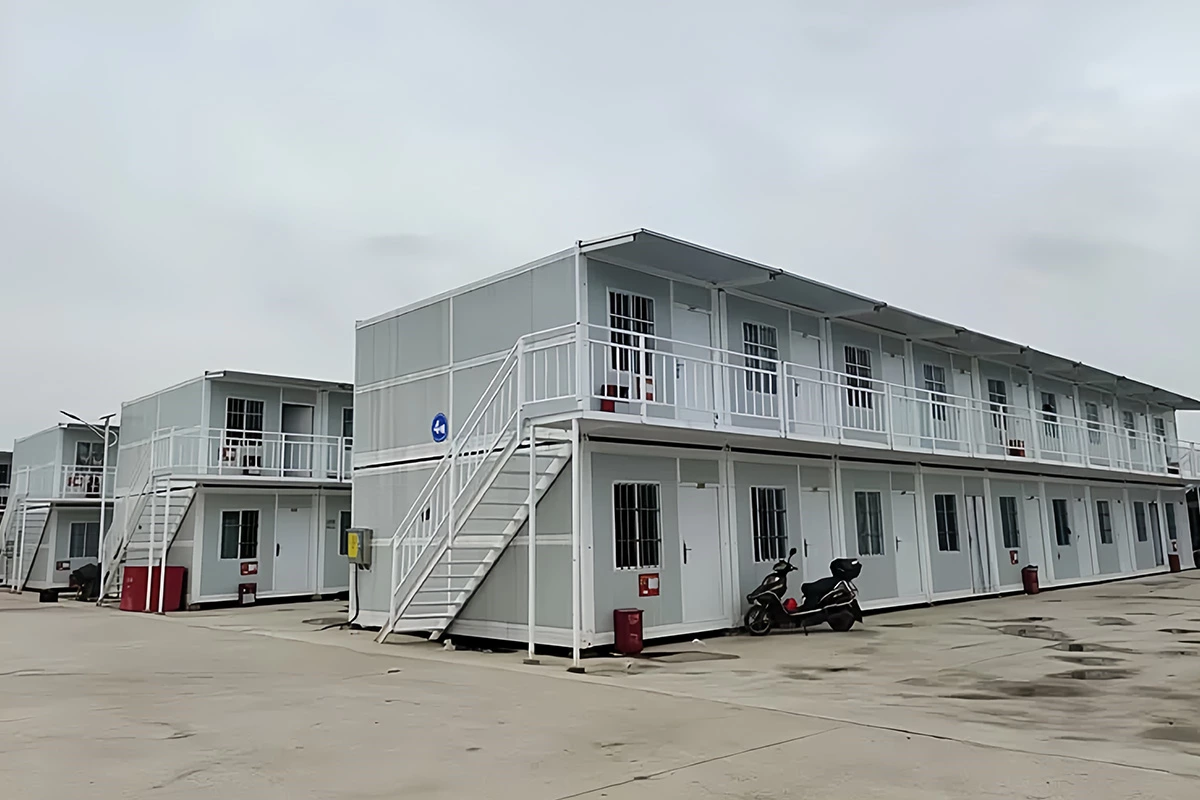

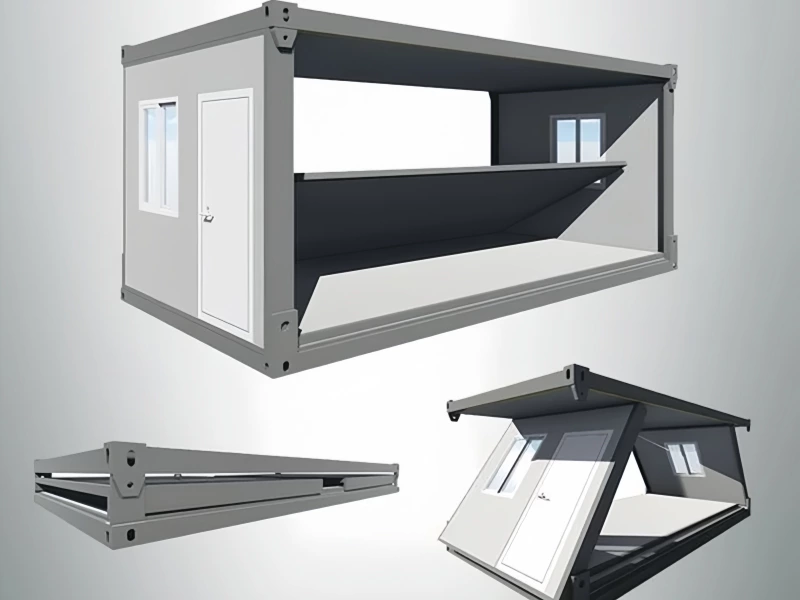

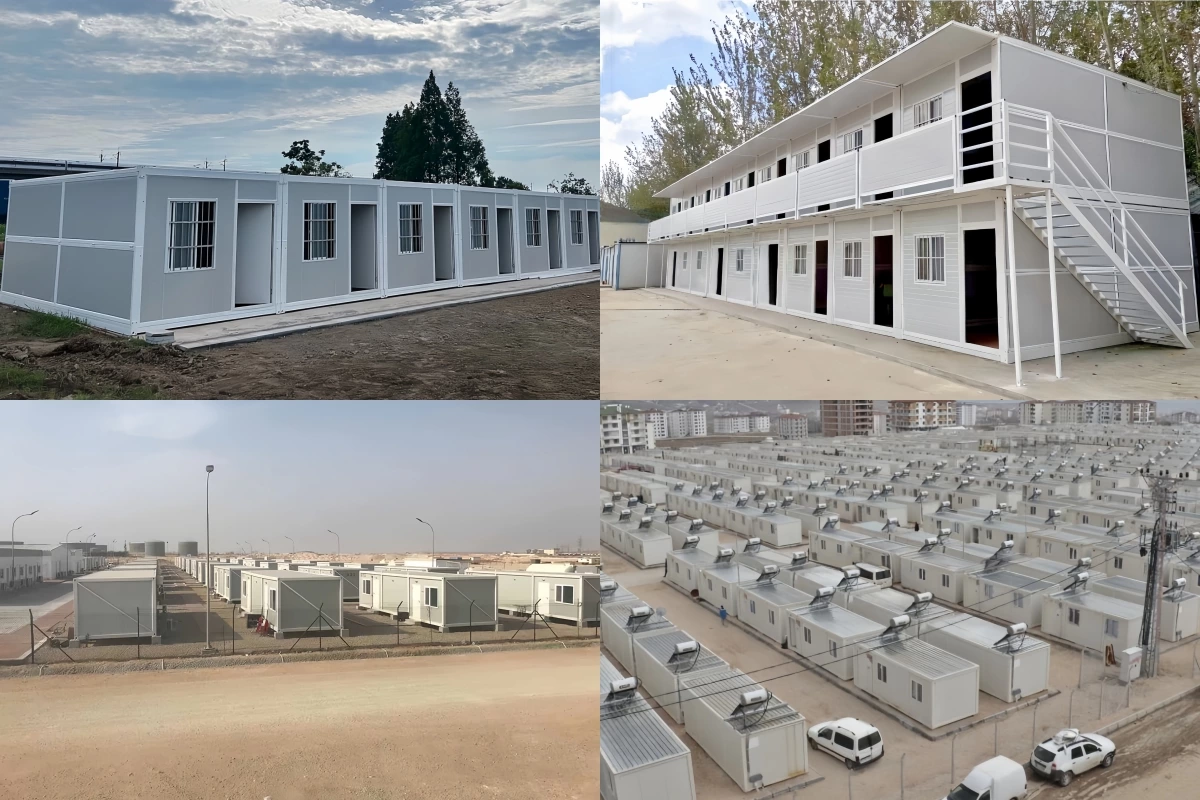

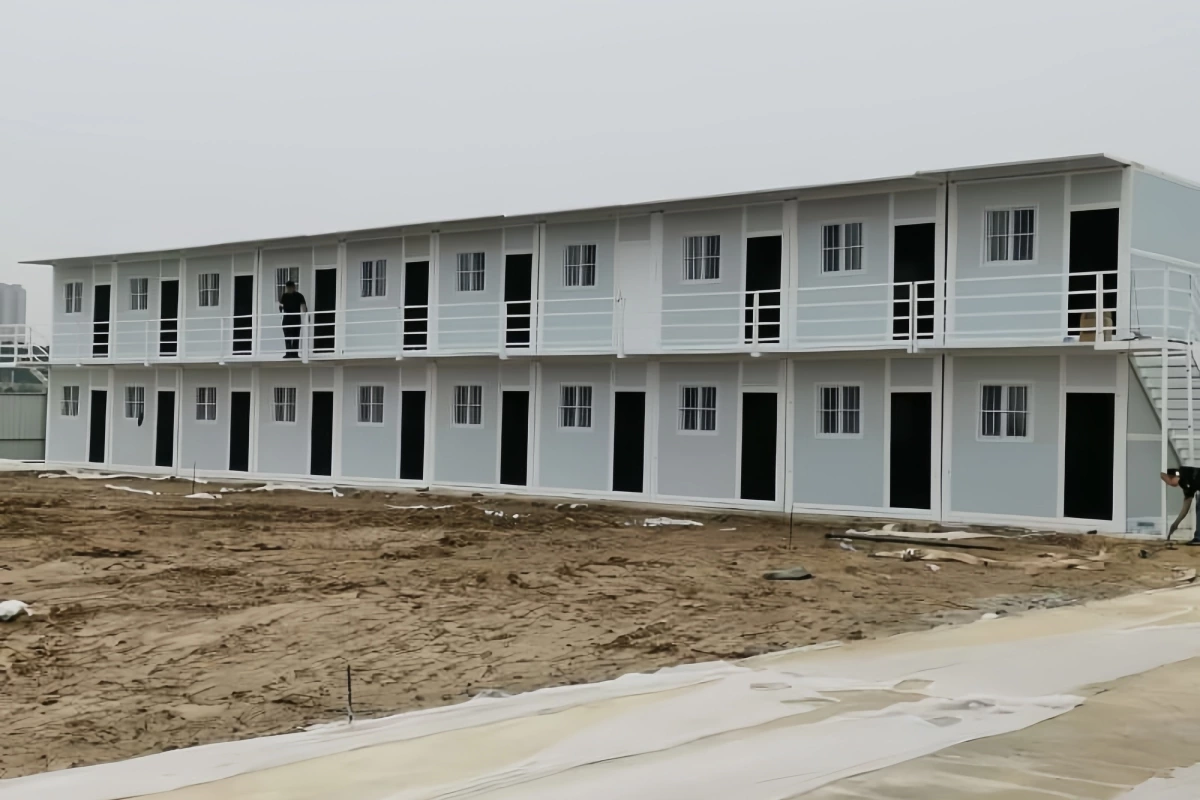

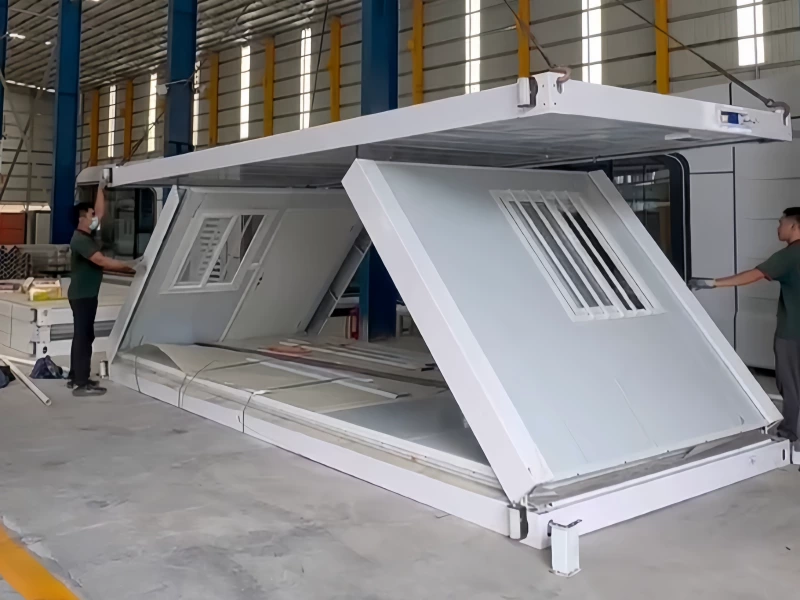

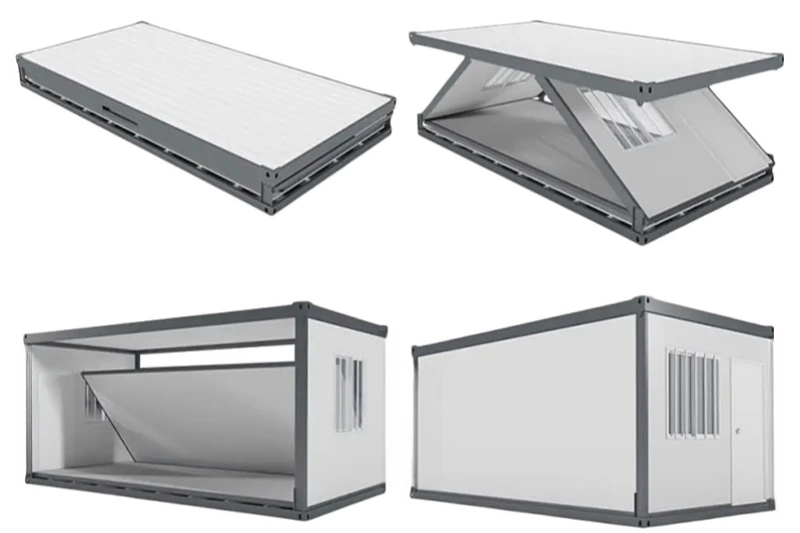

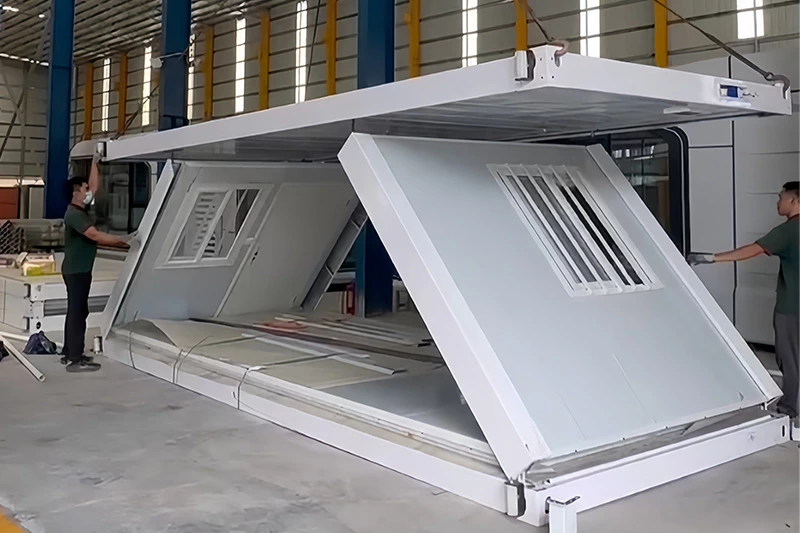

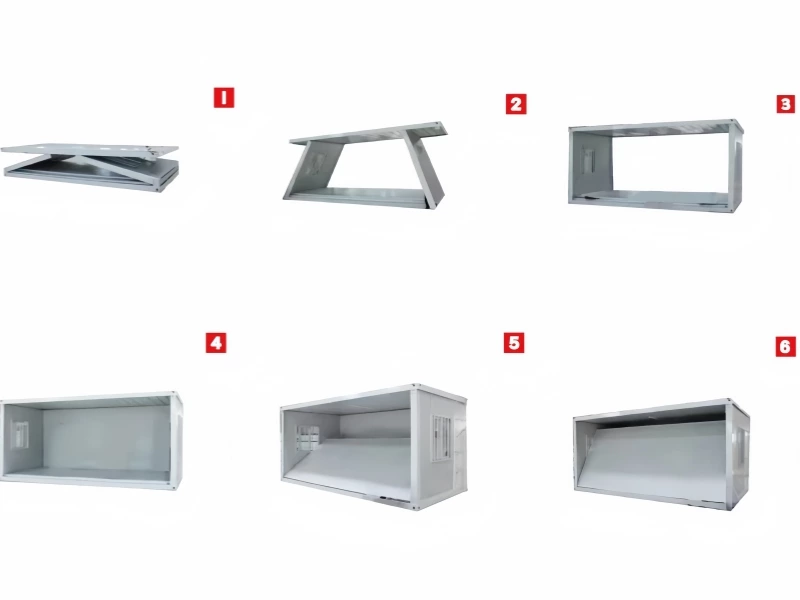

UVO Z-Type foldable container house features a unique zig-zag folding mechanism—lift the roof to auto-unfold walls, crane-free 8-minute installation. Factory pre-wired & pre-fitted, galvanized steel frame, waterproof roof, ideal for construction camps, offices, emergency shelters & global export.
| Item | Specification | |
| Basic Features | External Dimension(mm) | 5800L×2480W×2560H |
| Internal Dimension(mm) | 5640L×2320W×2400H | |
| Folded State(mm) | 5800×2480×380 | |
| Total Mass(kg) | 1050 | |
| Installation Method | Z-Type Zig-Zag Folding, Roof Jack-Up Expansion, Crane-Free | |
| Installation Time | 8 minutes / set (2-person operation) | |

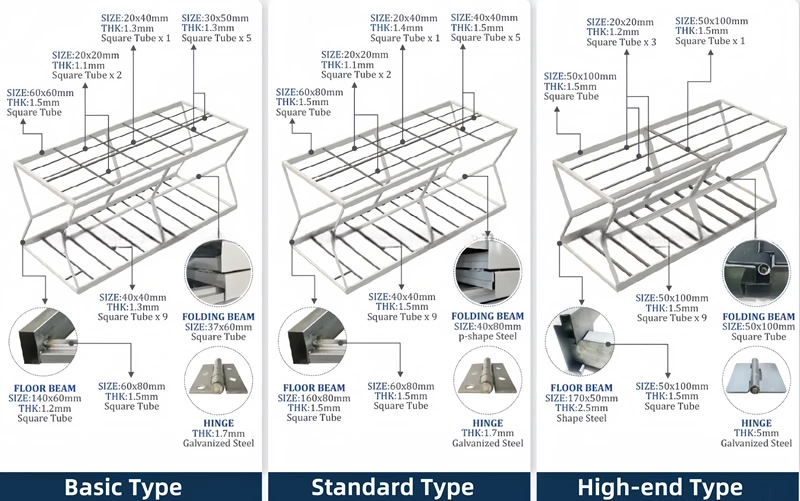

| Frame Structure | Top Main Beam | Q235B Rectangular Square Pipe 60×80×1.5mm (reinforced) |
| Bottom Main Beam | Q235B Rectangular Square Pipe 80×140×1.5mm | |
| Front & Rear Main Beams | Q235B Rectangular Square Pipe 60×80×1.5mm | |
| Sidewall Frames | Q235B Rectangular Square Pipe 40×80×1.5mm | |
| Bottom/Top Load-bearing Beams | Q235B Rectangular Square Pipe 40×40×1.5mm | |
| Hanging Head | Q235B 125×200×4mm | |
| Folding Hinges | Heavy-duty Galvanized Hinge 13mm, 1000+ cycles service life | |
| Box Top & Roof | Protective Coating | Electrostatic Spraying, High Gloss White, Anti-corrosion |
| Exterior Top Plate | 0.5mm Galvanized Plate + 0.4mm Color Steel Roof Sheet (360° interlock waterproof) | |
| Downpipe System | 50mm PVC Down pipe × 4 pcs, integrated drainage | |

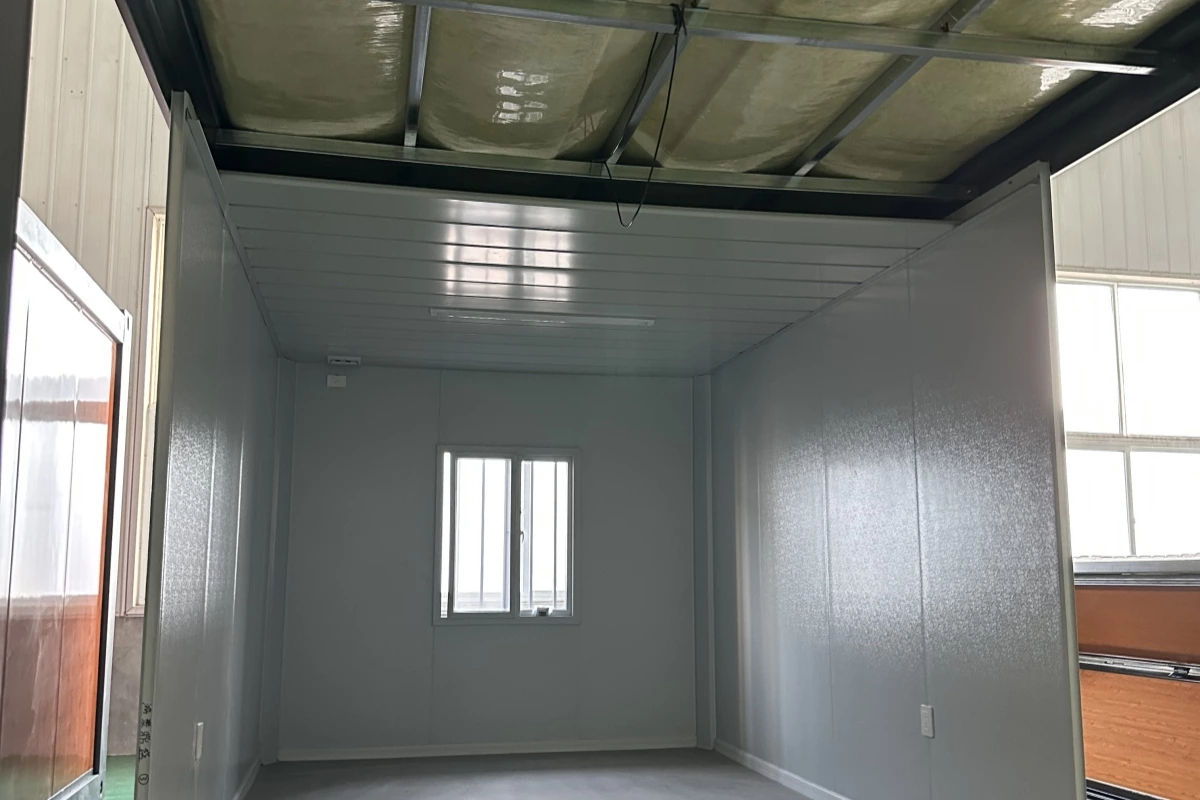

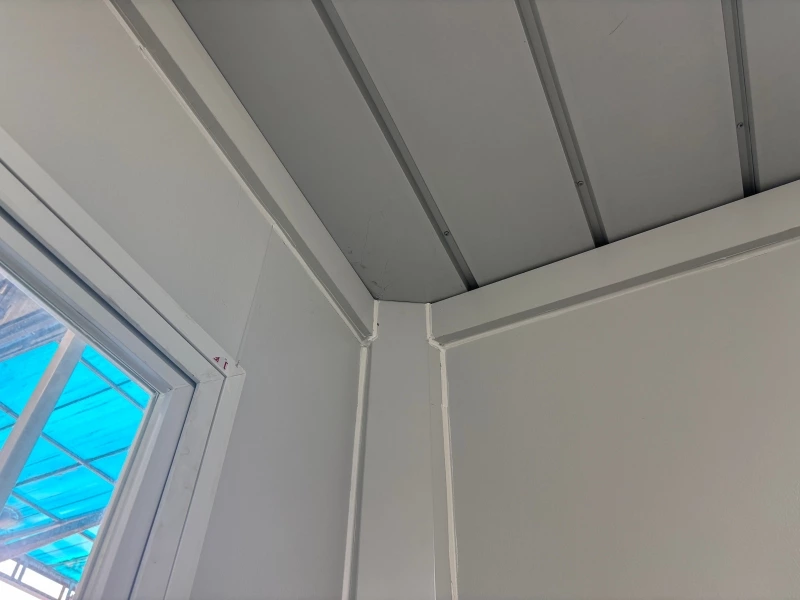

| Ceiling Insulation & Panel | 1.0mm PE Moisture-proof Membrane + 75mm Glass Wool (14kg/m³) + 0.3mm 831 Color Steel Ceiling | |
| Wall Panels | Side Walls | 50mm Composite Board: 0.23mm steel + 80kg/m³ Basalt Wool + 0.23mm steel |
| Front & Rear Walls | 65mm Composite Board: 0.23mm steel + 80kg/m³ Basalt Wool + 0.23mm steel | |
| Thermal Insulation Glass Wool | 50mm Glass Wool Roll (16kg/m³) for enhanced thermal performance | |
| Flooring | Base Floor Board | 18mm Cement Fiber Board |
| Surface Floor Finishing | 1.6mm Thick PVC Flooring, wear-resistant | |

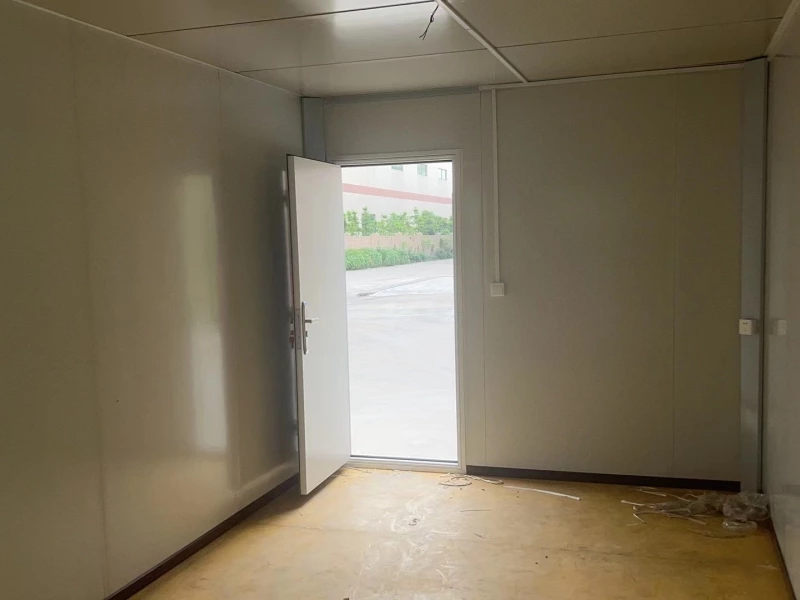

| Doors & Windows | Entry Door | Heavy-duty Mid-range Steel Door, 925×1970mm |
| Windows | Single-glazed Plastic Steel Window, 925×1130mm × 2 pcs | |
| Accessories & Electrical | Interior Trim & Hardware | White-gray Color Steel Corner Trim 4 pcs, full screw & sealant kit |
| Electrical System | Standard pre-wired electrical fittings set | |
| Customization | Custom Services | All dimensions, materials, and configurations can be customized |
Amid increasingly stringent global building regulations, our core advantage lies in the "non-permanent building" product attribute. Compared to traditional residential buildings that require full building permits, this type of product is easier to implement as a temporary structure, site facility, or commercial pop-up space, thereby lowering approval thresholds and shortening deployment cycles. However, it's important to note that if long-term occupancy or connection to municipal systems is involved, relevant permits must still be applied for according to local regulations.

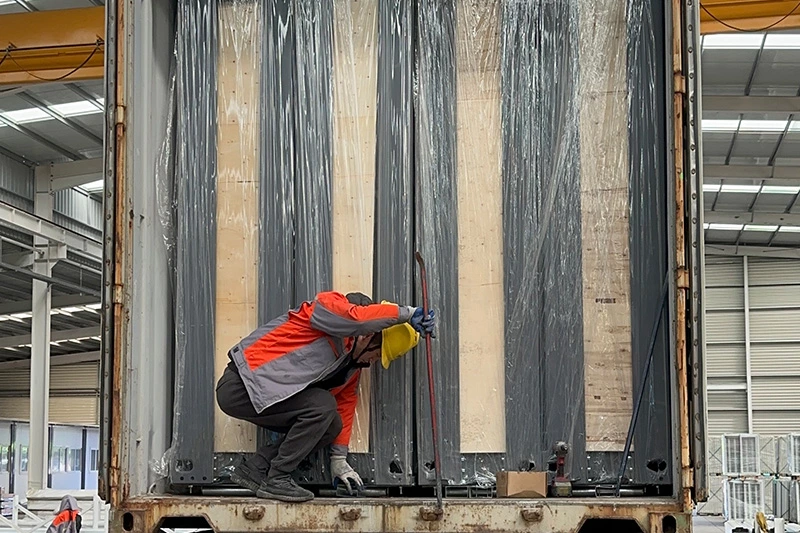

The height of the UVO Z-type folding container unit is not simply a design limitation, but rather the result of comprehensive optimization based on global transportation standards, the thickness of the folding structure, and the overall structural strength. To ensure efficient container loading, reduce logistics costs, and enable rapid deployment, its interior clear height is typically controlled at around 2.5m, maximizing transportation and delivery efficiency.
The combines a high-strength galvanized steel structure with high-performance sandwich panels (EPS, glass wool, rock wool, PU), offering excellent corrosion resistance, waterproofing, and thermal insulation. With a thermal conductivity as low as 0.04 W/(m·K), it remains stable and comfortable even in hot or humid environments. Its core steel frame is protected by both a galvanized layer and an anti-rust coating, effectively resisting salt spray and rainwater erosion, ensuring long-term durability even in coastal or high-humidity areas.
MOQ for Z‑type folding container house is 5 sets.
Supports direct municipal connection; compatible with standalone water tank + integrated septic system; customizable off‑grid power solution for no‑utility areas.
Yes. Z‑type uses high‑density glass wool insulation panel (50–100mm) in walls and roof, with good thermal retention, fire resistance and noise reduction performance.
Mass production and delivery can be completed within 20–30 days after order confirmation.
Depends on local building rules. As a modular temporary structure, it usually involves simpler approval or exemption in most regions.
Fully prefabricated. Just unfold and lock, then plug‑and‑play with water and electricity connection.
Main steel structure lasts 15-30 years; regular replacement of wearing parts ensures long‑term stable use.
