11800*6160*2480mm
11800*2200*2480mm
74.34㎡
6000kg

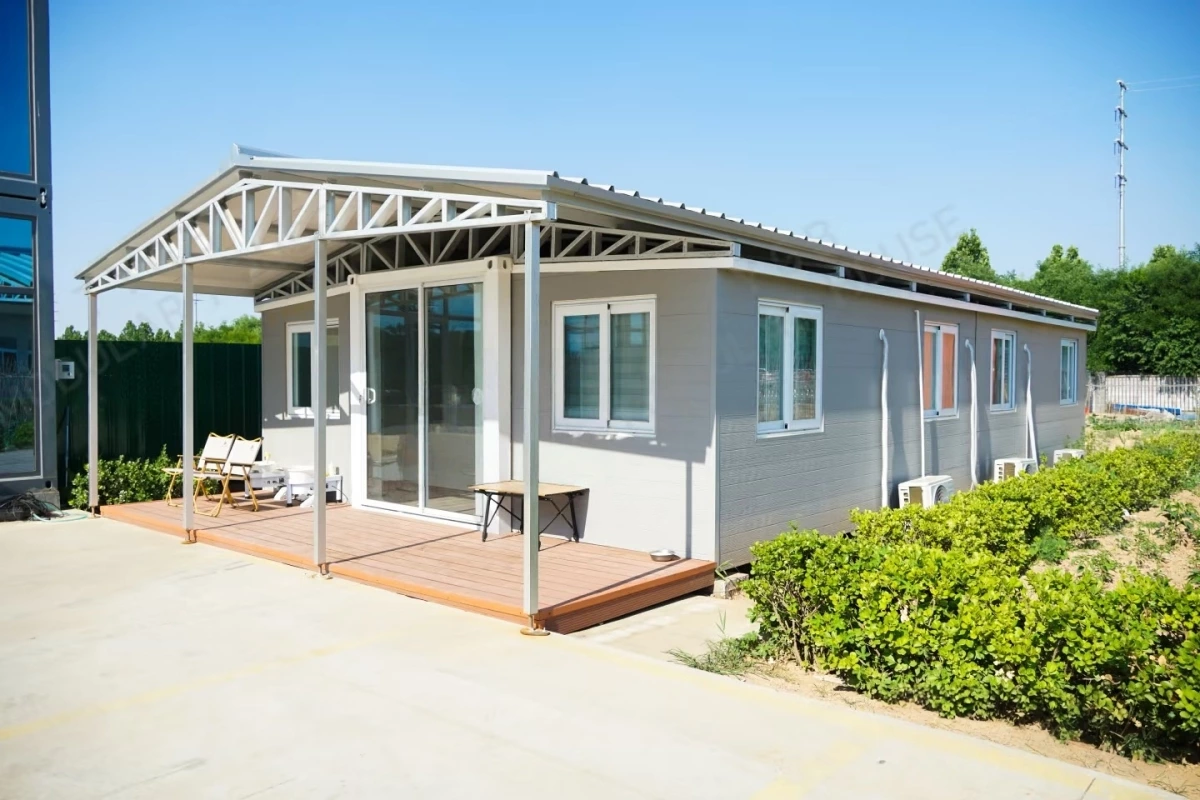

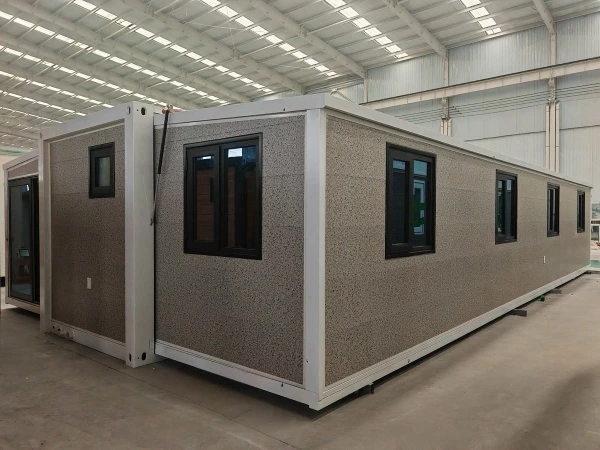

This UVO 40ft prefabricated expandable container home complies with Australian standards and features a minimalist exterior design with white embossed panels. The interior layout comprises 2 bedrooms, 1 living room, 1 bathroom, and 1 kitchen, comfortably accommodating 4 to 6 people. This product is widely utilized for residential purposes, granny flats, offices, construction sites, and various other settings.
)
| Category | Component | Specification |
|---|---|---|
| Basic Parameters | Layout | 1 Living Room |
| Occupancy | 4–8 Persons | |
| Power Consumption | 12KW | |
| Gross Weight | 6.5 Tons | |

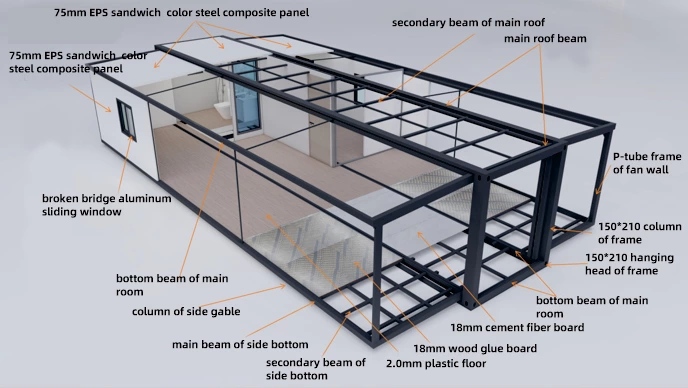

| Main Frame (Full Galvanised Standard) | Top Main Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting |
| Top Sub-Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Top Longitudinal Secondary Beam | 130×30×1.3mm galvanised angle iron | |
| Top Transverse Secondary Beam | 130×50×1.5mm galvanised angle iron | |
| Bottom Main Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Bottom Sub-Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Bottom Secondary Beam | 140×80×2.0mm galvanised angle iron | |
| Lifting Lug | 12.8-grade portable anti-tipping lifting hook | |
| Corner Column | 180×140×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Wing Frame (Full Galvanised Standard) | Top Frame (a) | 150×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting |
| Top Frame (b) | 30×30×1.5mm flat iron | |
| Bottom Sub-Frame | L80×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Bottom Secondary Beam | 140×80×2.0mm galvanised angle iron | |
| Folding Hinge | 130mm galvanised hinge | |
| Overall Frame Protective Coating | Surface Treatment | Electrostatic spray / Straight white powder coating + anti-corrosion layer |
| Roof Panel | Main Body Exterior Top Panel | 950-type — 50mm thick, double-sided 0.3mm EPS colour steel composite panel + tile-effect single board t0.45mm |
| Main Body Interior Ceiling Panel | 193-type ribbed flat ceiling panel | |
| Wing Exterior Top Panel | 950-type — 100mm thick, double-sided 0.3mm EPS colour steel composite panel + tile-effect single board t0.45mm | |
| Wall Panel | Side Walls / Front & Rear Walls | 950-type — 65mm double-sided 0.3mm EPS colour steel composite panel |
| Interior Partition Panel | 950-type — 50mm double-sided 0.3mm EPS colour steel composite panel | |
| Flooring | Main Floor Board | 18mm plywood (fire-retardant, termite-proof) |
| 18mm cement board (sturdy and non-deformable) | ||
| 2mm PVC wear-resistant flooring | ||
| Electrical System | Circuit System | AC 220V / 50Hz |
| Lighting | 300×600mm flat panel LED light + ceiling fan light | |
| Power Outlets | Standard 3-pin and 5-pin sockets (configurable per client requirement) | |
| Light Switches | Dual-control / single-control toggle switch (configurable per client requirement) | |
| Wiring | Main cable 6mm²; AC outlet 2.5mm²; lighting 1.5mm² (configurable to local certified electrical standards) | |
| Accessories | — | Roof corner trims, kick strips, corner guards, waterproof tape, hanging straps, structural adhesive (White Cloud), rubber mallet |

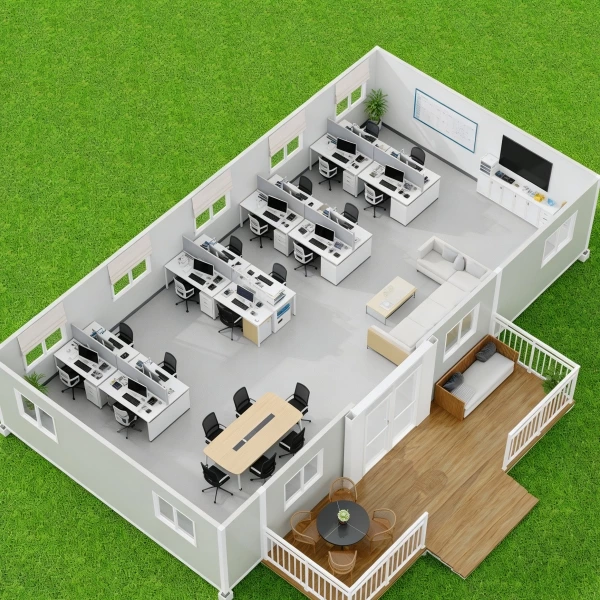

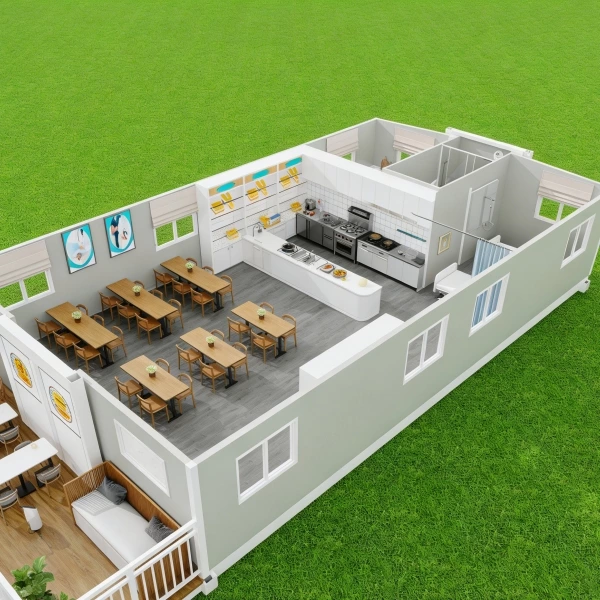

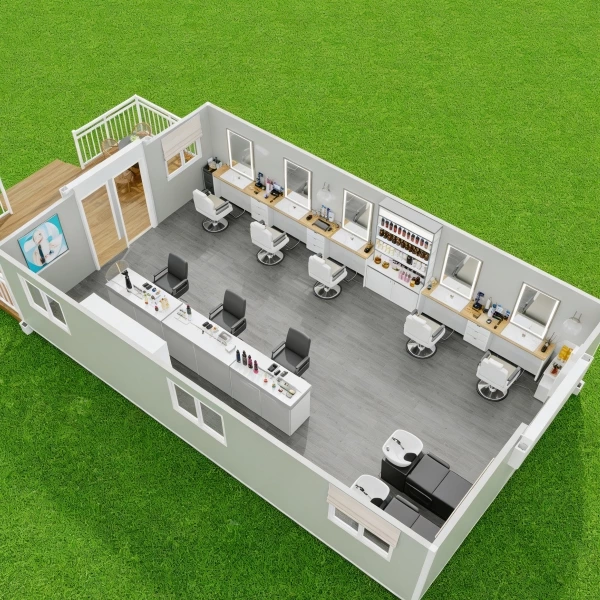

The UVO 40ft expandable Unit begins with highly flexible exterior customization capabilities, supporting various roof configurations (such as flat or pitched roofs), external balcony systems, and integrated trailer chassis solutions. This allows for personalized adaptation to suit diverse countries and application scenarios—whether for vacation camps, commercial spaces, or mobile offices.

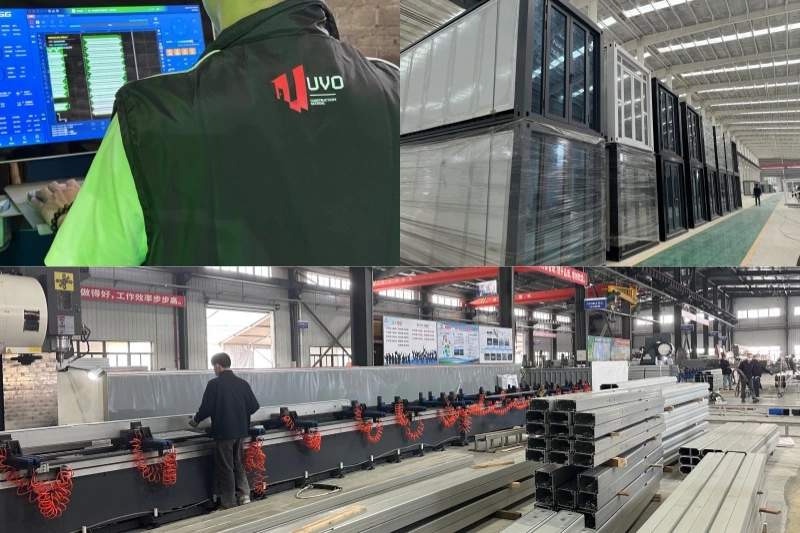

From a manufacturing perspective, this product utilizes a factory-based pre-fabrication model. All core structural components, wall systems, and embedded plumbing and electrical conduits are fully completed prior to leaving the factory, thereby significantly reducing the complexity of on-site construction as well as associated time costs. Standardized production processes ensure that every unit achieves a consistent and controllable level of quality regarding structural integrity, corrosion resistance, and thermal insulation; simultaneously, this approach facilitates more efficient and reliable batch deliveries and global shipping.

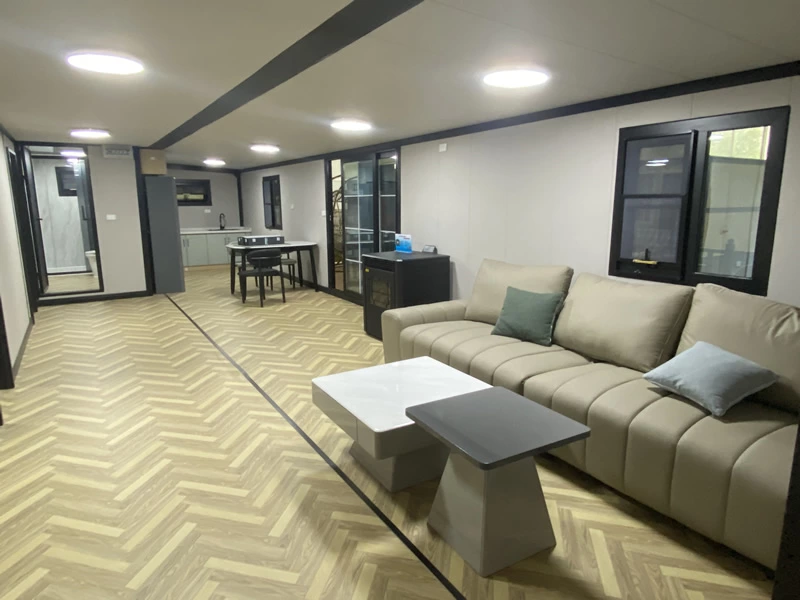

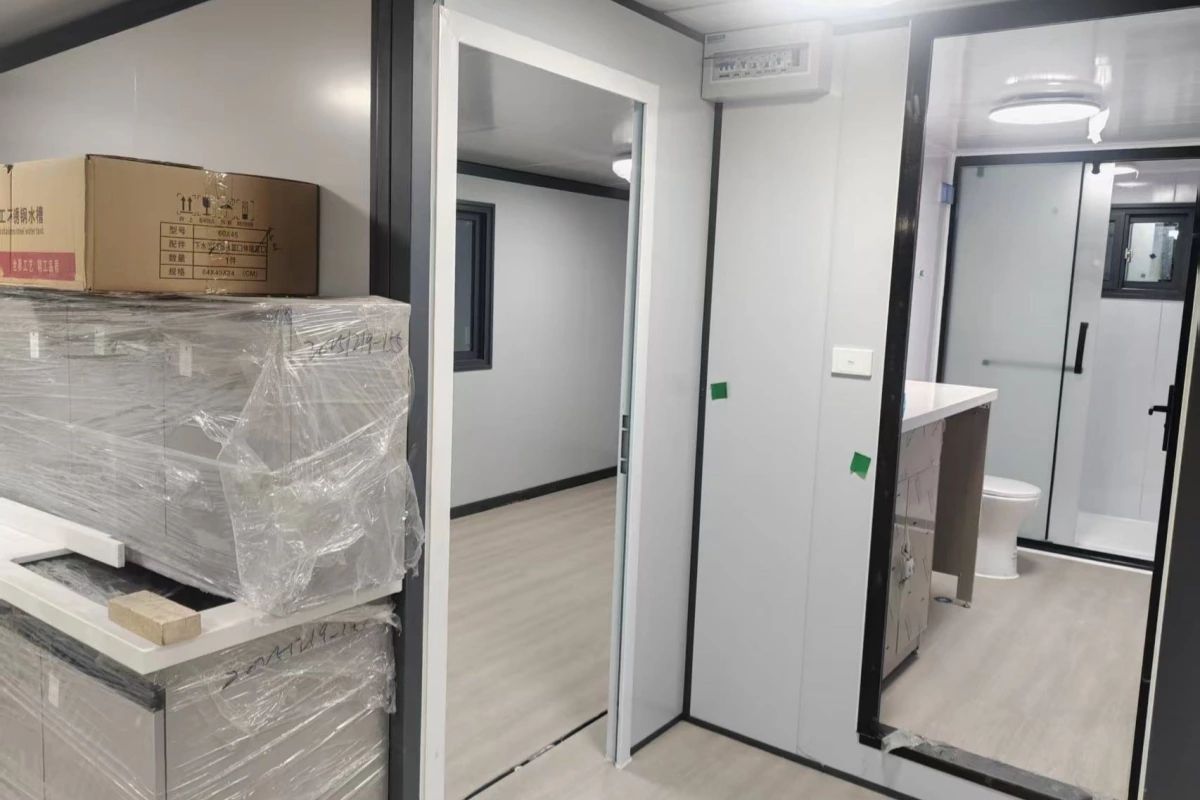

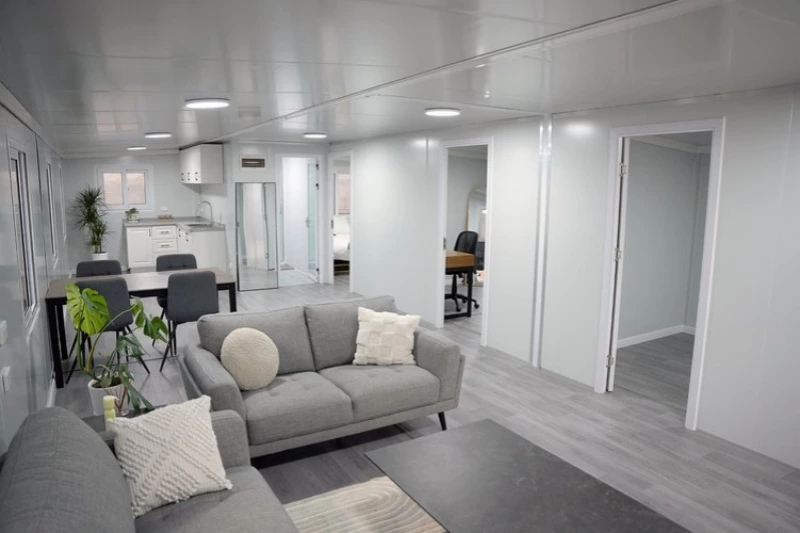

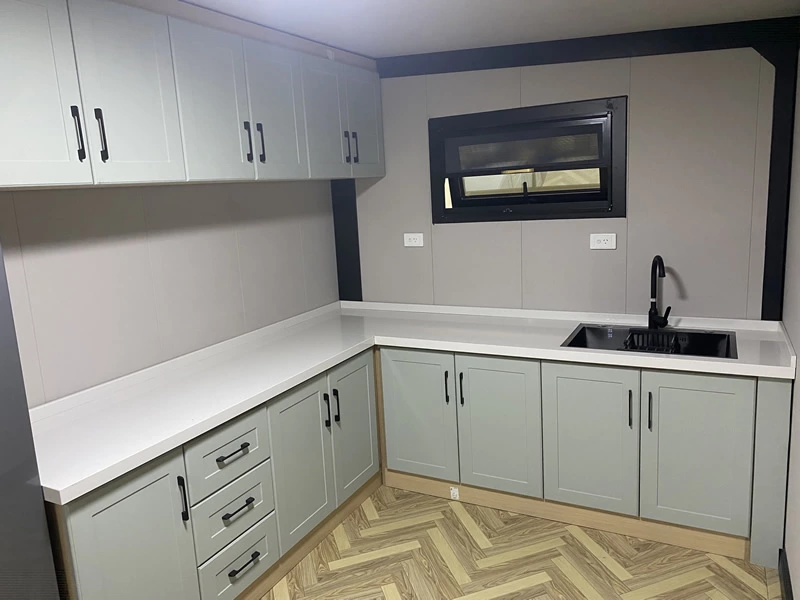

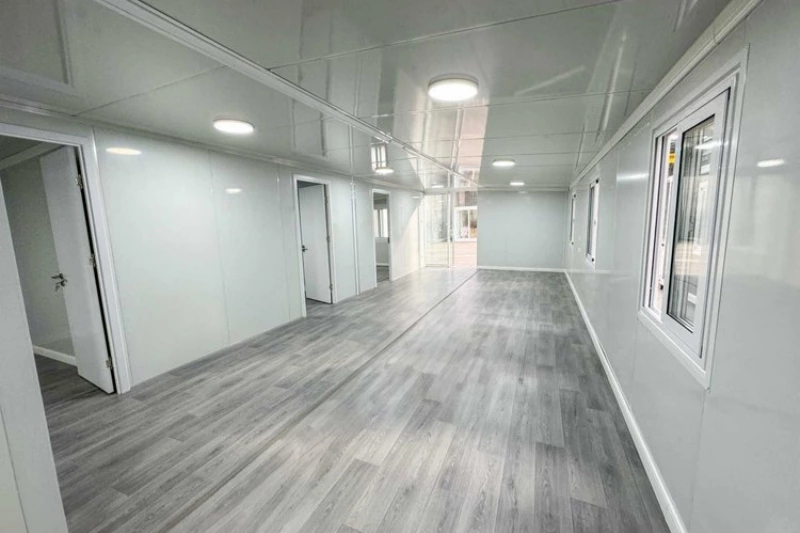

In terms of interior layout, the 40ft prefabricated home expands to effectively double its usable space, which is thoughtfully partitioned into a bedroom, living room, kitchen, and a bathroom area featuring a wet-and-dry separation design. Soft furnishings and amenities can be further customized to suit specific needs, enabling a versatile transformation ranging from basic residential living to a high-end vacation retreat experience.

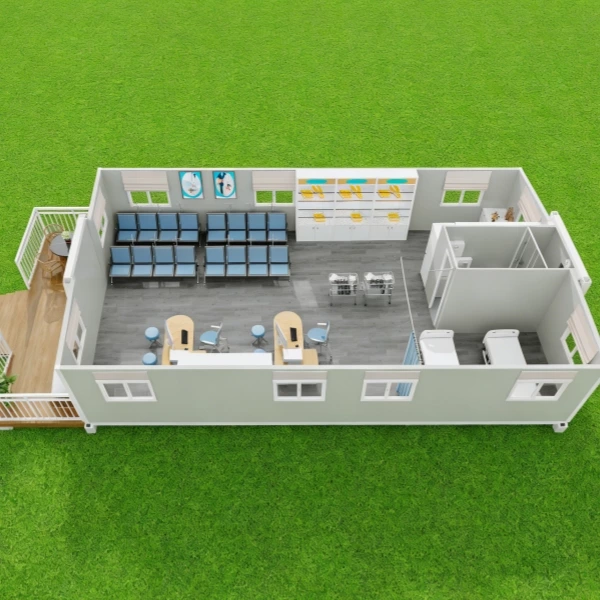

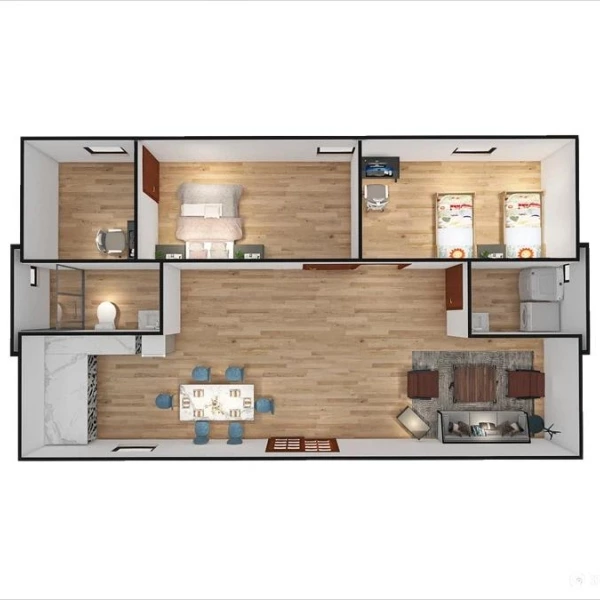

UVO tailored for users who need more space, taking into account practicality and living comfort. The series offers a variety of layout options, including two bedrooms and one living room, three bedrooms and one living room, and four bedrooms and one living room, which can flexibly meet the needs of different families or project scenarios.

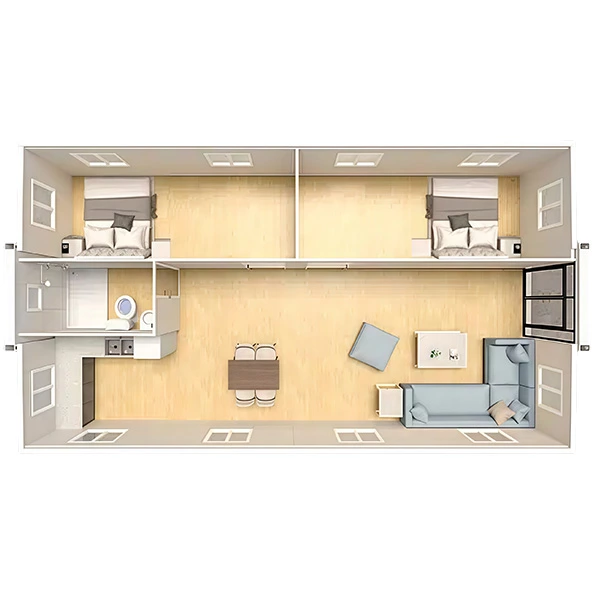

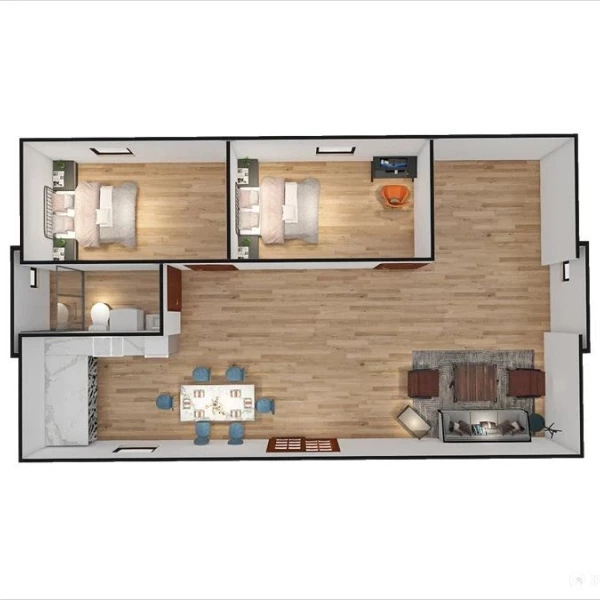

2 bedrooms, 1 living room, 1 bathroom

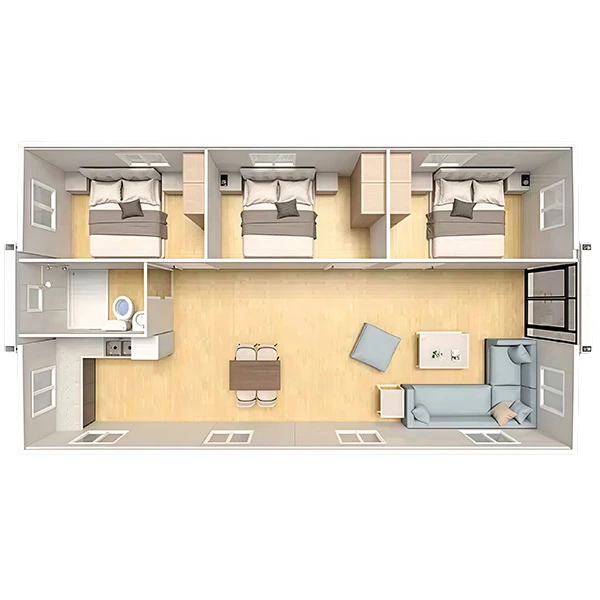

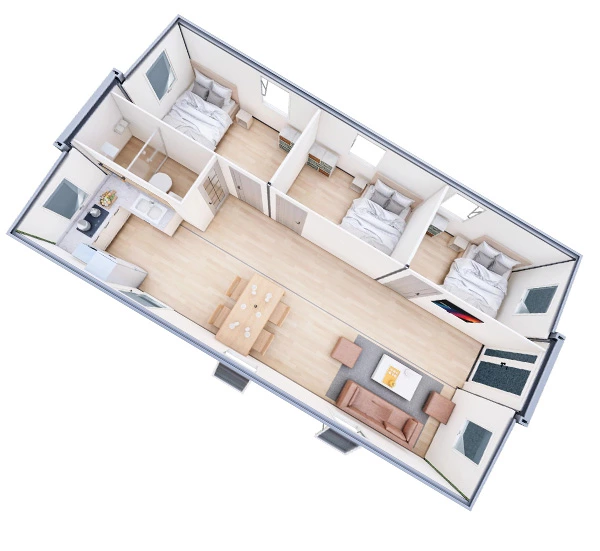

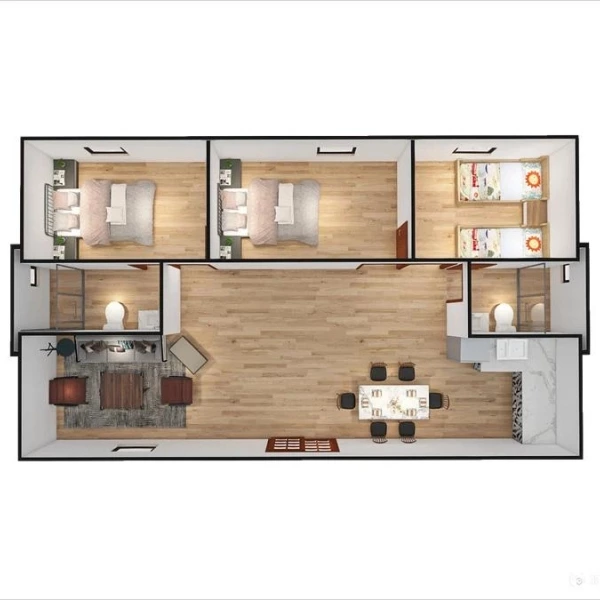

3 bedrooms, 2 bathrooms, 1 living room, 1 kitchen
2 bedrooms, 1 living room, 1 bathroom, 1 office, 1TV room

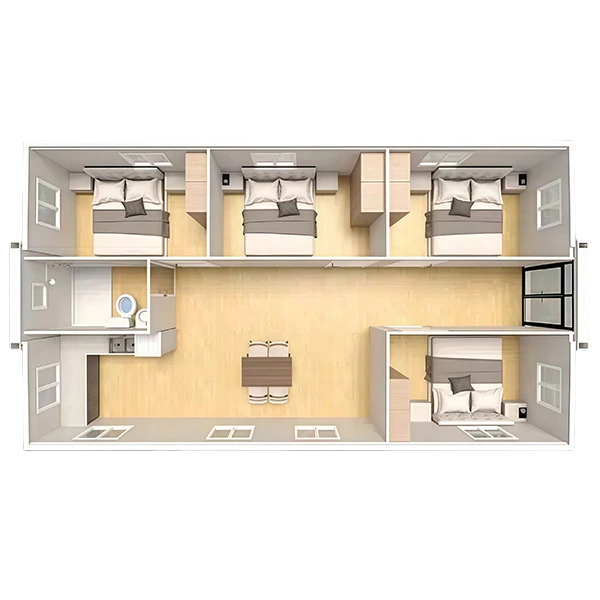

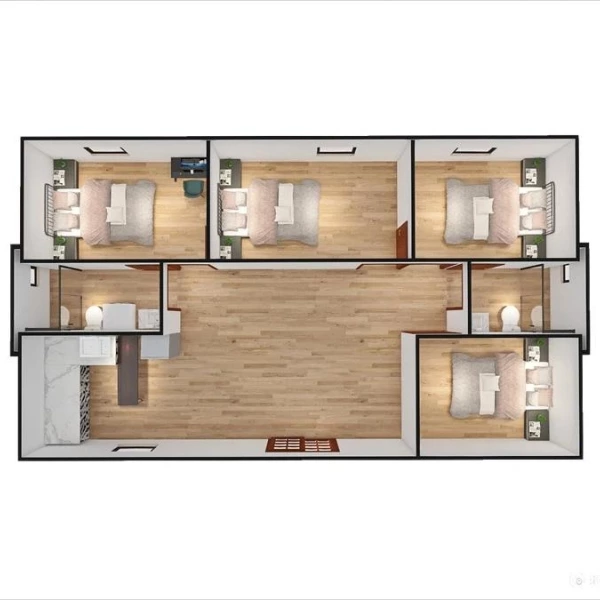

4 bedrooms, 2 bathrooms, 1 kitchen
2 bedrooms, 1 living room, 1 bathroom, 1 office
The minimum order quantity is one unit. We support customization for single units, and tiered discounts are available for bulk purchases.
We have established airtightness, weather resistance, and structural stability as our core priorities. The installation of flashing at critical joints significantly enhances sealing effectiveness; furthermore, we provide pitched roof structures and gutter systems designed to efficiently channel away accumulated water, thereby minimizing the risk of leakage.
With an A-class fire rating, it provides reliable fire protection for a wide range of residential settings.
Yes. We use high-density polyurethane (PU) insulation and weather-resistant coatings, making our homes energy-efficient and suitable for diverse climates, from Australia to Northern Europe
UVO standard production typically takes approximately 30-35 days, with shipping times varying depending on the country and region. Delivery times are negotiable. This lead time covers the entire process, from order confirmation to design, structural engineering, manufacturing, assembly, quality inspection, and shipping.
Common types of foundations include: reinforced concrete slabs, concrete bedding layers, and compacted ground foundations.
It boasts a service life of up to 30 years. This durability is closely linked to its optimized material selection and structural engineering design.
It possesses exceptional wind and seismic resistance capabilities. Its wind resistance rating reaches Level 11, and its seismic resistance rating reaches Level 8.
Our expandable container houses have obtained ISO 9001 and AU/NZ (SAA/WaterMark) 、US/Canada (UL/CE) and NATA asbestos-free certification standards, and have passed Australian, American, and European standards.
Our 40ft model is optimized for a 2-3bedroom layout, including a spacious living area, a full kitchen, and a bathroom. It provides over 800 sqft of livable space.
UVO provides a two-year structural warranty for all homes, as well as warranty coverage for fixtures, fittings, and surface finishes.
A team of 3–4 people can fully expand and set up the 40ft unit in 1–2 days. The unit arrives 90% finished, requiring only basic site preparation.
Shipping costs will vary based on the distance between your delivery address and our factory warehouse, as well as the complexity of the delivery.
Select your desired unit with any additional features & delivery. Receive your final quote so you can arrange finances.
Carry out your due diligence, confirm you are satisfied & ready to proceed. We will then jump on a quick call to confirm.
Once we have received payment we will begin your build. Depending on our capacity this may take up to 2 months.
Depending on your delivery method, We coordinate delivery to your nearest national ports.
