9000*6160*2480mm
9000*2200*2480mm
55.4㎡
4500kg

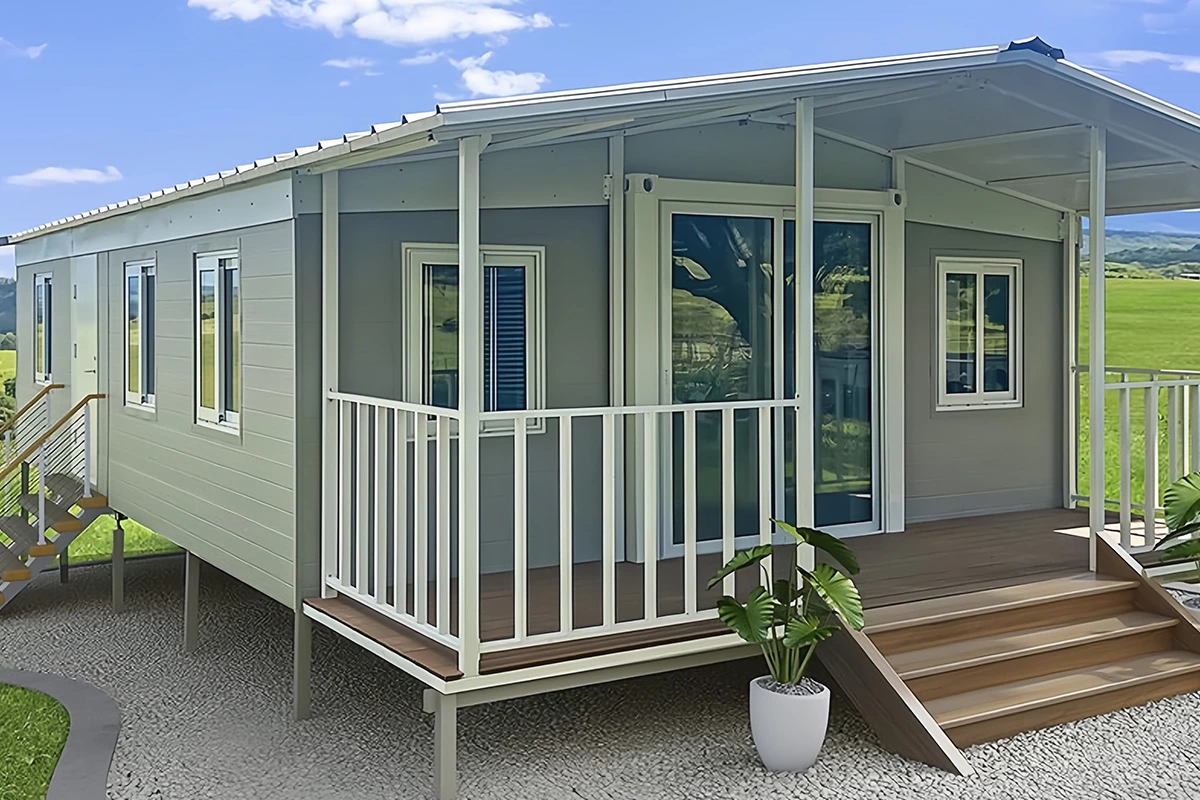

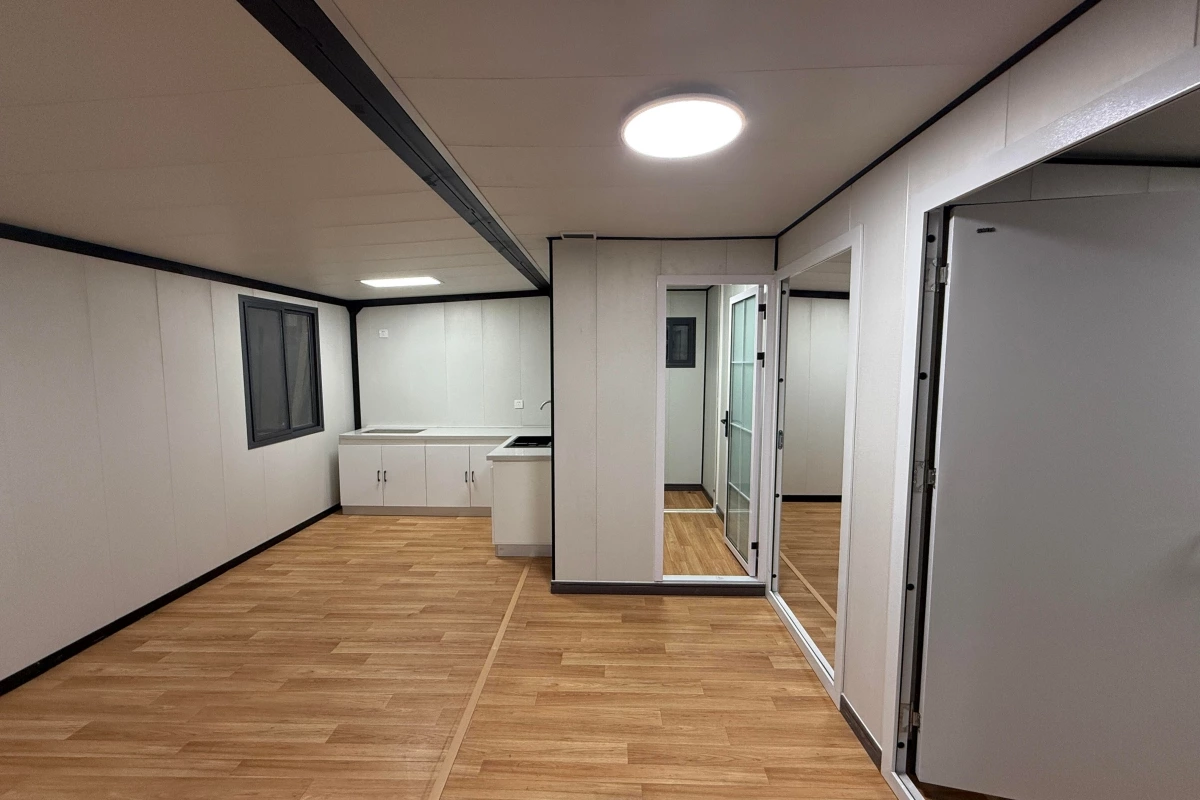

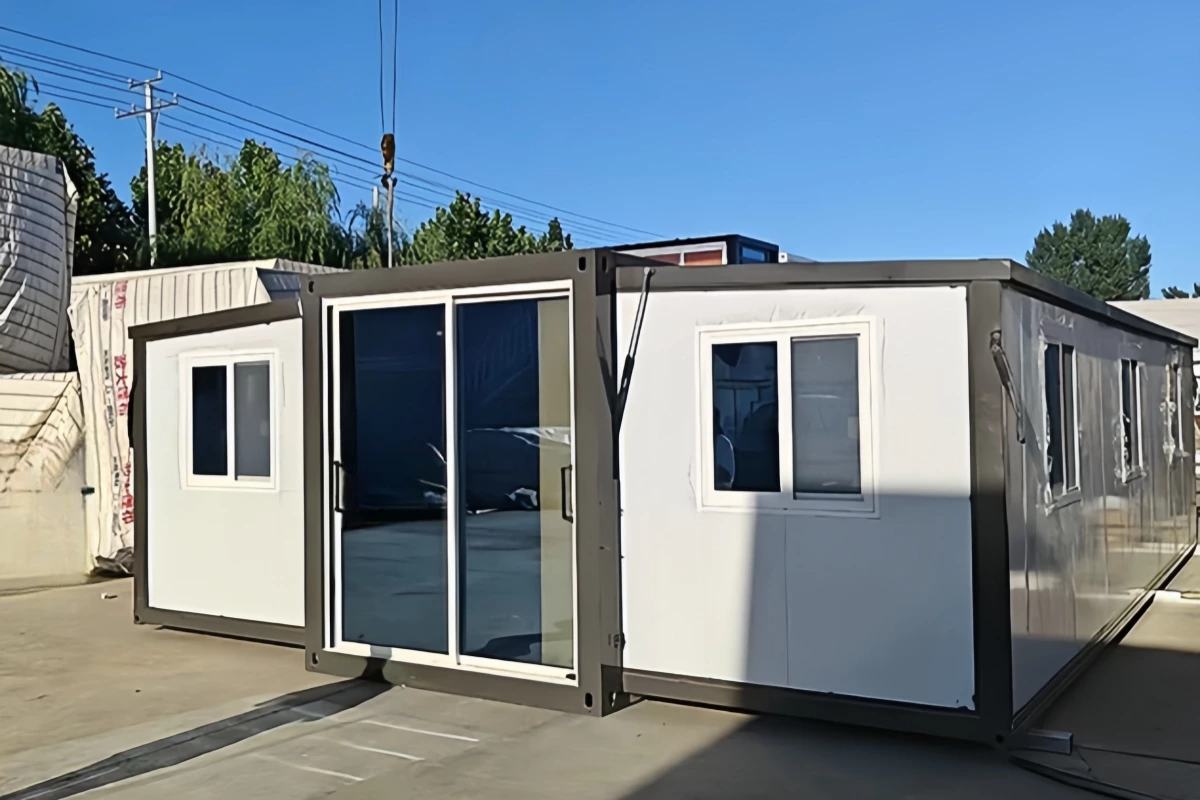

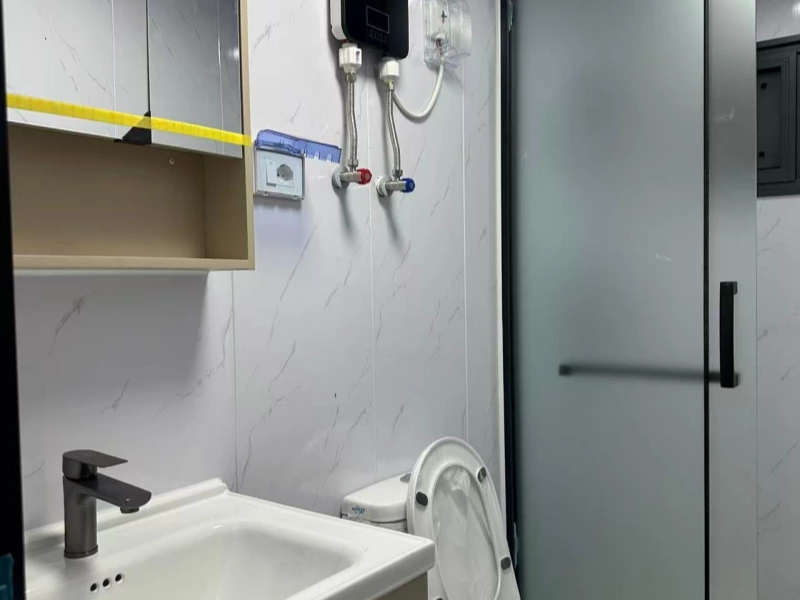

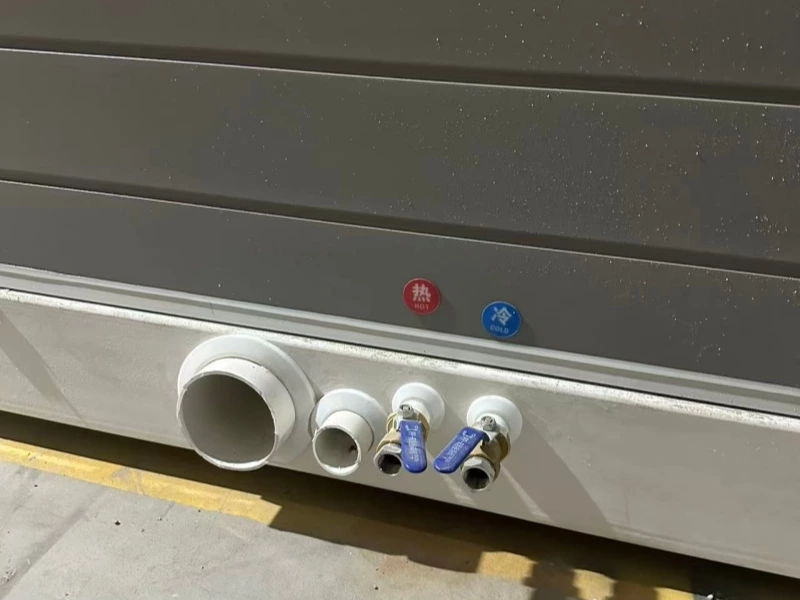

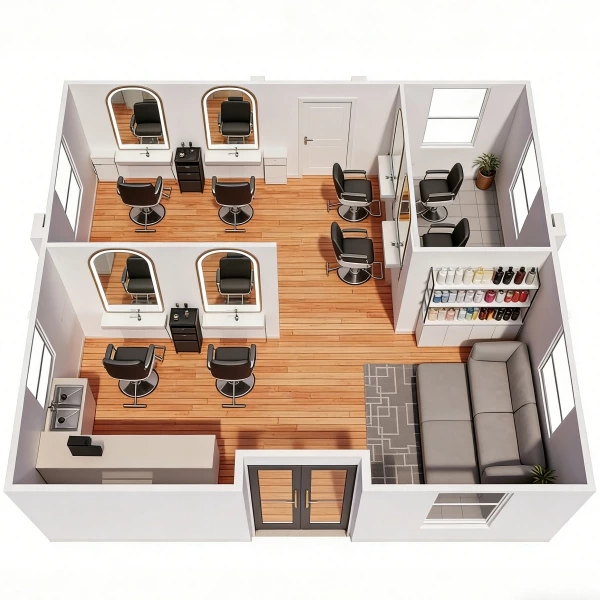

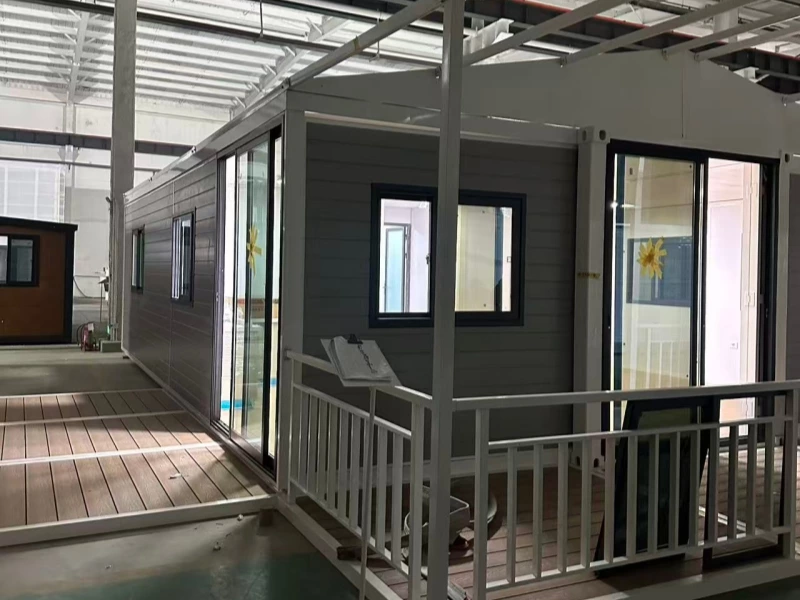

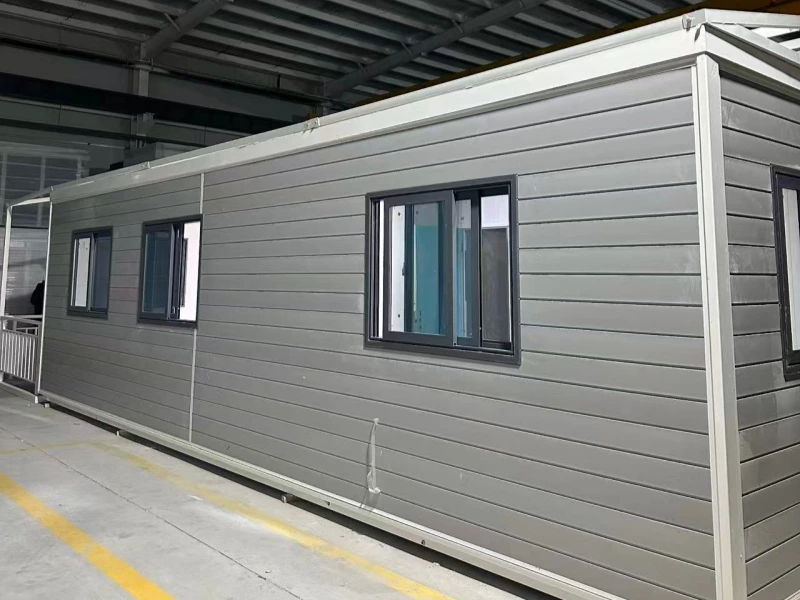

This 30ft prefabricated container home compliant with Australian standards, offers 55 square meters of usable living space. Its exterior features a roof and a balcony, and is finished with decorative grey metal carved panels. The interior layout comprises 2 bedrooms, 1 living room, 1 bathroom, and 1 kitchen. The unit comes pre-installed with hot and cold water supply lines and drainage plumbing; its size is ideal for use as a stand-alone Granny Flat, staff dormitory, barbershop, or temporary shop, and it is ready for immediate use.
)
| Category | Component | Specification |
|---|---|---|
| Main Frame (Full Galvanised Standard) | Top Main Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting |
| Top Sub-Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Top Longitudinal Secondary Beam | 130×30×1.3mm galvanised square tube | |
| Top Transverse Secondary Beam | 130×50×1.5mm galvanised square tube | |
| Bottom Main Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Bottom Sub-Beam | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Bottom Secondary Beam | 140×80×2.0mm galvanised angle iron | |
| Lifting Lug | 12.8-grade portable anti-tipping lifting hook | |
| Corner Column | 180×140×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Wing Frame (Full Galvanised Standard) | Top Frame (a) | 150×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting |
| Top Frame (b) | 30×30×1.5mm flat iron | |
| Bottom Main Sub-Frame | 180×100×3.0mm galvanised square tube — outer wrapped 3-bend fitting | |
| Bottom Secondary Beam | 140×80×2.0mm galvanised angle iron | |
| Folding Hinge | 130mm galvanised hinge | |
| Overall Frame Protective Coating | Surface Treatment | Electrostatic spray / Straight white powder coating + anti-corrosion layer |
| Roof Panel | Main Body Exterior Top Panel | 950-type — 50mm thick, double-sided 0.3mm EPS colour steel composite panel + tile-effect single board t0.45mm |
| Main Body Interior Ceiling Panel | 193-type ribbed flat ceiling panel | |
| Wing Exterior Top Panel | 950-type — 100mm thick, double-sided 0.3mm EPS colour steel composite panel + tile-effect single board t0.45mm | |
| Wall Panel | Side Walls / Front & Rear Walls | 950-type — 65mm double-sided 0.3mm EPS colour steel composite panel |
| Interior Partition Panel | 950-type — 50mm double-sided 0.3mm EPS colour steel composite panel | |
| Flooring | Main Floor Board | 18mm plywood (fire-retardant, termite-proof) |
| 18mm cement board (sturdy and non-deformable) | ||
| 2mm PVC wear-resistant flooring | ||

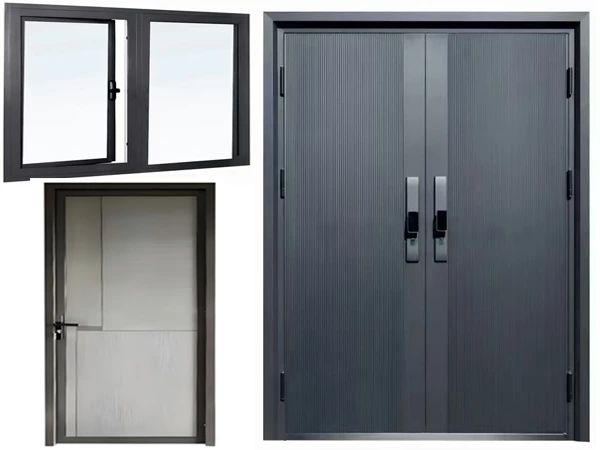

| Doors & Windows | UPVC Double-Glazed Sliding Window | 920×920mm — 6 panels |
| Premium Steel Fire Door | 840×2035mm — 1 unit | |
| Electrical System | Circuit System | AC 220V / 50Hz |
| Lighting | 300×600mm flat panel LED light + ceiling fan light | |
| Power Outlets | Standard 3-pin and 5-pin sockets (configurable per client requirement) | |
| Light Switches | Dual-control / single-control toggle switch (configurable per client requirement) | |
| Wiring | Main cable 6mm²; AC outlet 4mm²; general outlet 2.5mm²; lighting 1.5mm² (configurable to local certified electrical standards) | |
| Accessories | — | Roof corner trims, kick strips, corner guards, waterproof tape, hanging straps, structural adhesive (White Cloud), rubber mallet |

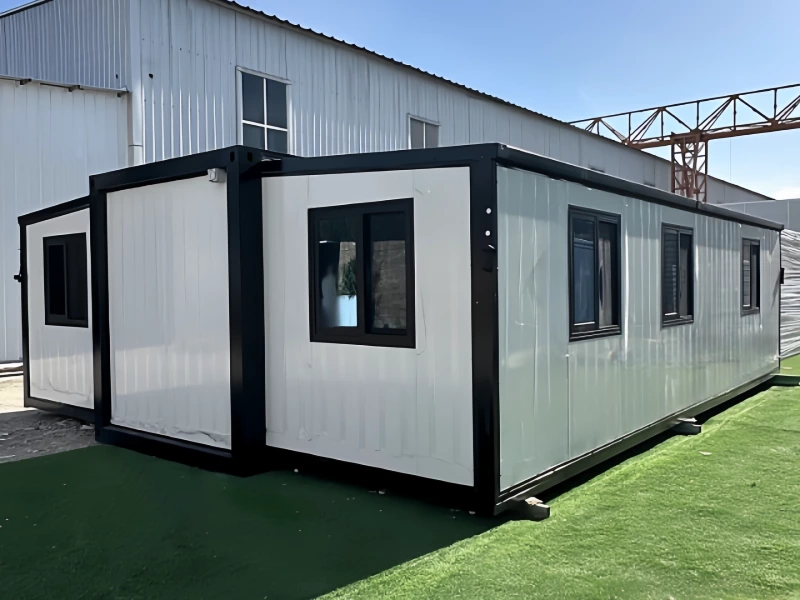

Compared to the compact feel of a 20ft unit, the 30ft expandable unit offers nearly 55 sqm of usable space, enough to easily create a spacious 2-bedroom, 1-living room, 1-bathroom layout, completely eliminating any sense of confinement. In contrast to the demanding space requirements of a 40ft unit , it achieves a perfect balance between ease of transport and site adaptability. It offers the flexibility of a 20ft unit while providing the expansive feel of a nearly 40ft unit, making it an ideal choice for those seeking the best balance between ample space and cost-effectiveness.
The core strength of the UVO 30ft expandable home lies in its fully galvanized steel frame. Every inch of steel undergoes deep galvanizing to ensure excellent corrosion resistance even in humid or salt spray environments, with a service life of over 20 years. Between the layers of steel plates, we've filled them with high-density rock wool. This not only provides excellent Class A fire protection but also acts as a "thermostatic protective shell," insulating against extreme temperatures and providing a quiet and comfortable living experience year-round.
Thanks to advanced folding and expandable technology, the UVO 30ft home can be transformed from a "container" into a fully furnished house in just 2 hours after arrival on site. It's more than just a house; it's a vessel for limitless possibilities. Whether used as a trendy campsite in a luxury wilderness area, a mobile office in a remote location, or a private studio in a family backyard, the spacious 30ft provides ample room for customization.

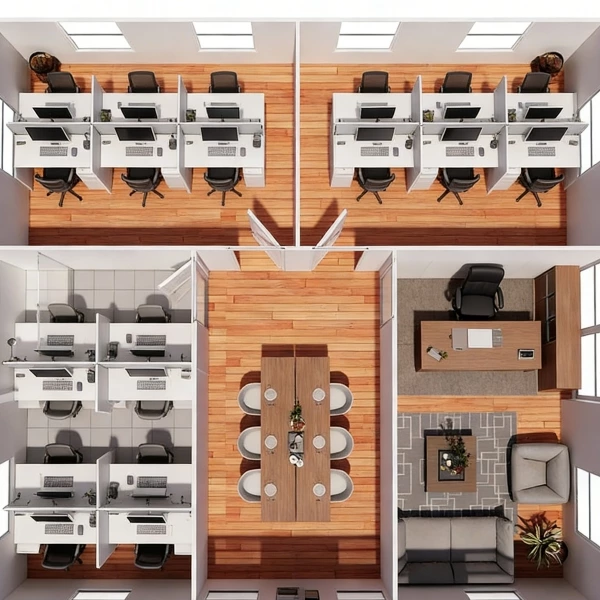

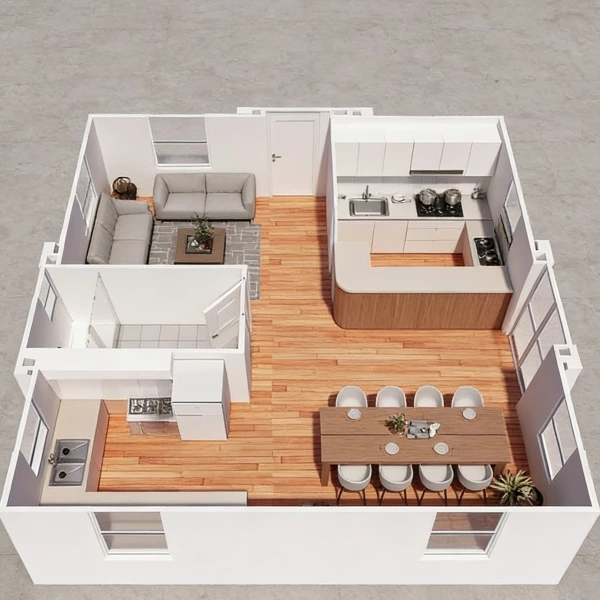

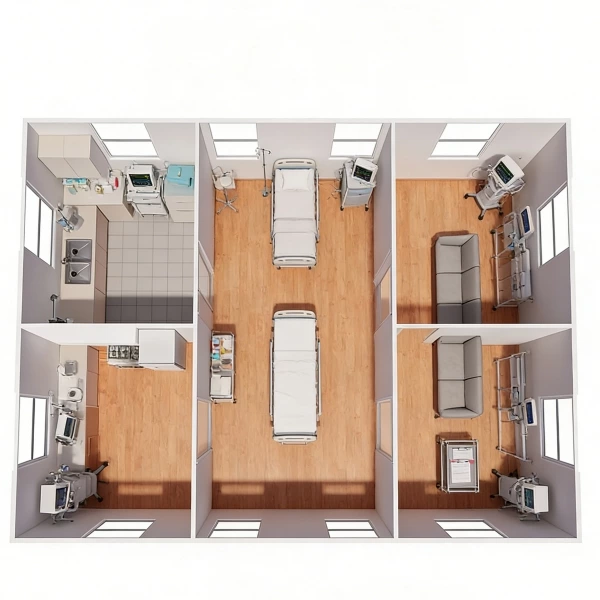

Compare 30ft vs 40ft expandable layouts, UVO 30ft container houses plans are designed to create spacious, comfortable and well-lit living spaces. We offer a variety of flexible house types, including one-bedroom to four-bedroom layouts, suitable for different needs such as personal residence, family use or project support. Each unit has a separate living area, a fully functional kitchenette and a separate bathroom with a shower and toilet to meet daily living needs.
Note: The unit design may be slightly adjusted based on inventory and customization requirements, and the specific room type will be confirmed before placing an order.

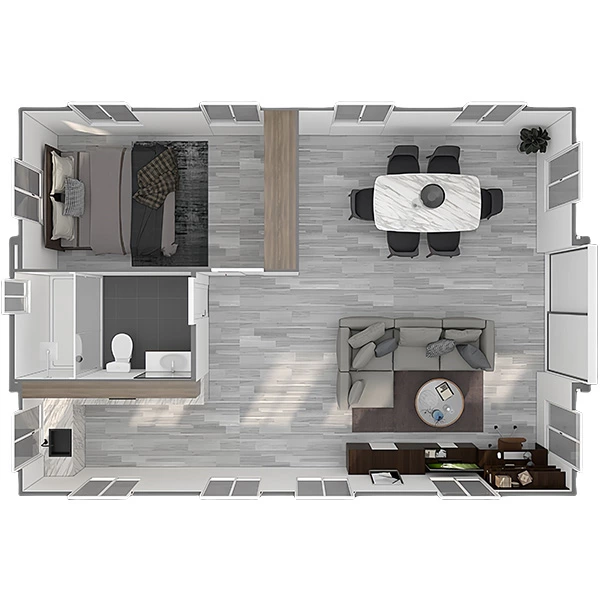

1 Bedroom and 1 Living Room

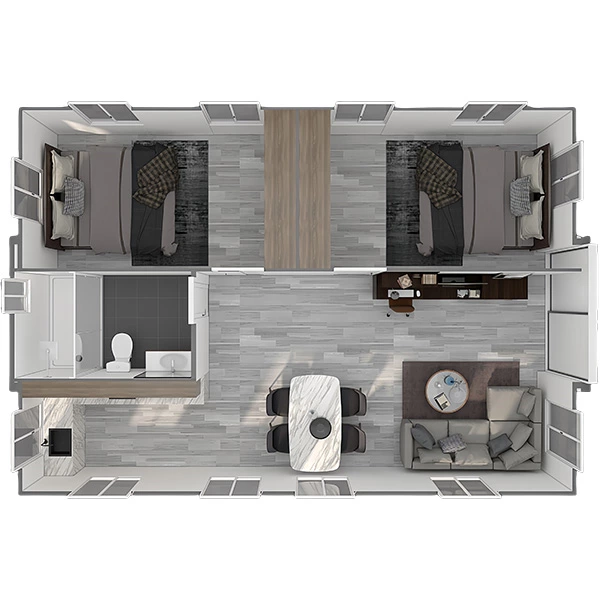

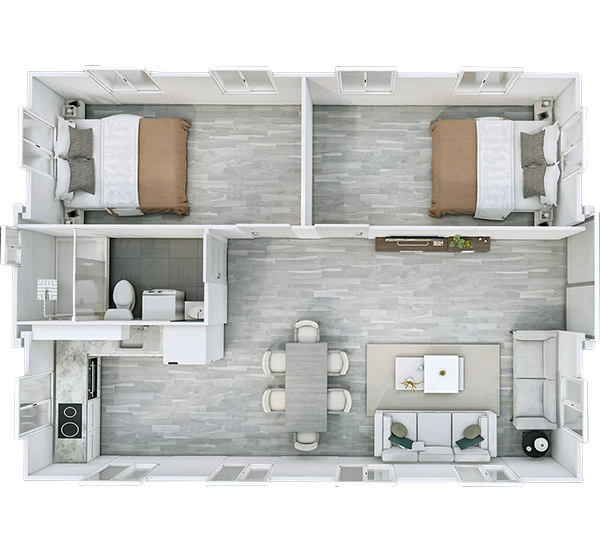

2 Bedroom and 1 Living Room

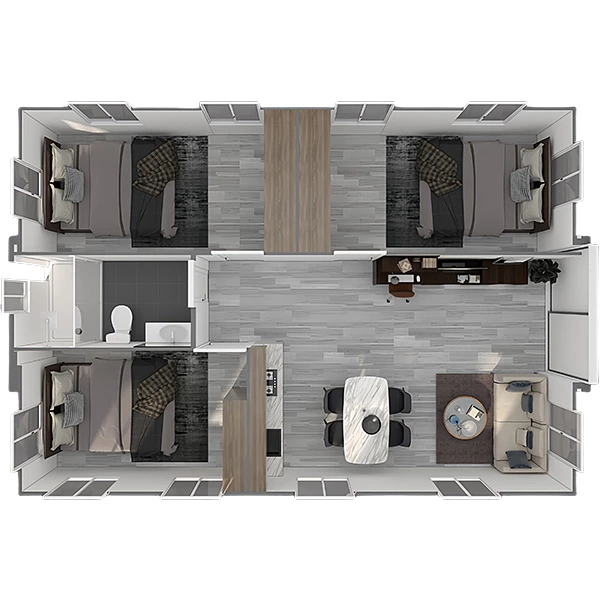

3 Bedroom and 1 Living Room
The minimum order quantity is one unit. We support customization for single units, and tiered discounts are available for bulk purchases.
We have established airtightness, weather resistance, and structural stability as our core priorities. The installation of flashing at critical joints significantly enhances sealing effectiveness; furthermore, we provide pitched roof structures and gutter systems designed to efficiently channel away accumulated water, thereby minimizing the risk of leakage.
With an A-class fire rating, it provides reliable fire protection for a wide range of residential settings.
Yes, the structural framework of all our homes utilizes high-density glass wool insulation panels—ranging in thickness from 50 to 75 millimeters—as the primary material for both walls and roofs, effectively blocking the transmission of external heat and cold. Furthermore, our entire range of prefabricated expandable homes comes standard with double-glazed windows, further enhancing overall thermal insulation performance.
UVO standard production typically takes approximately 30-35 days, with shipping times varying depending on the country and region. Delivery times are negotiable. This lead time covers the entire process, from order confirmation to design, structural engineering, manufacturing, assembly, quality inspection, and shipping.
Common types of foundations include: reinforced concrete slabs, concrete bedding layers, and compacted ground foundations.
It boasts a service life of up to 30 years. This durability is closely linked to its optimized material selection and structural engineering design.
It possesses exceptional wind and seismic resistance capabilities. Its wind resistance rating reaches Level 11, and its seismic resistance rating reaches Level 8.
Our expandable container houses have obtained ISO 9001 and AU/NZ (SAA/WaterMark) 、US/Canada (UL/CE) and NATA asbestos-free certification standards, and have passed Australian, American, and European standards.
UVO provides a two-year structural warranty for all homes, as well as warranty coverage for fixtures, fittings, and surface finishes.
Shipping costs will vary based on the distance between your delivery address and our factory warehouse, as well as the complexity of the delivery.
Select your desired unit with any additional features & delivery. Receive your final quote so you can arrange finances.
Carry out your due diligence, confirm you are satisfied & ready to proceed. We will then jump on a quick call to confirm.
Once we have received payment we will begin your build. Depending on our capacity this may take up to 2 months.
Depending on your delivery method, We coordinate delivery to your nearest national ports.
