20ft Expandable Container Home Texas — Backyard ADU
A Backyard Home That Beat Texas Real Estate
Texas median home prices have risen 40% since 2019, reaching $341,800 statewide — and in Austin the median sits at $573,750. For many Texas families, buying a second property or building a traditional addition is simply out of reach.

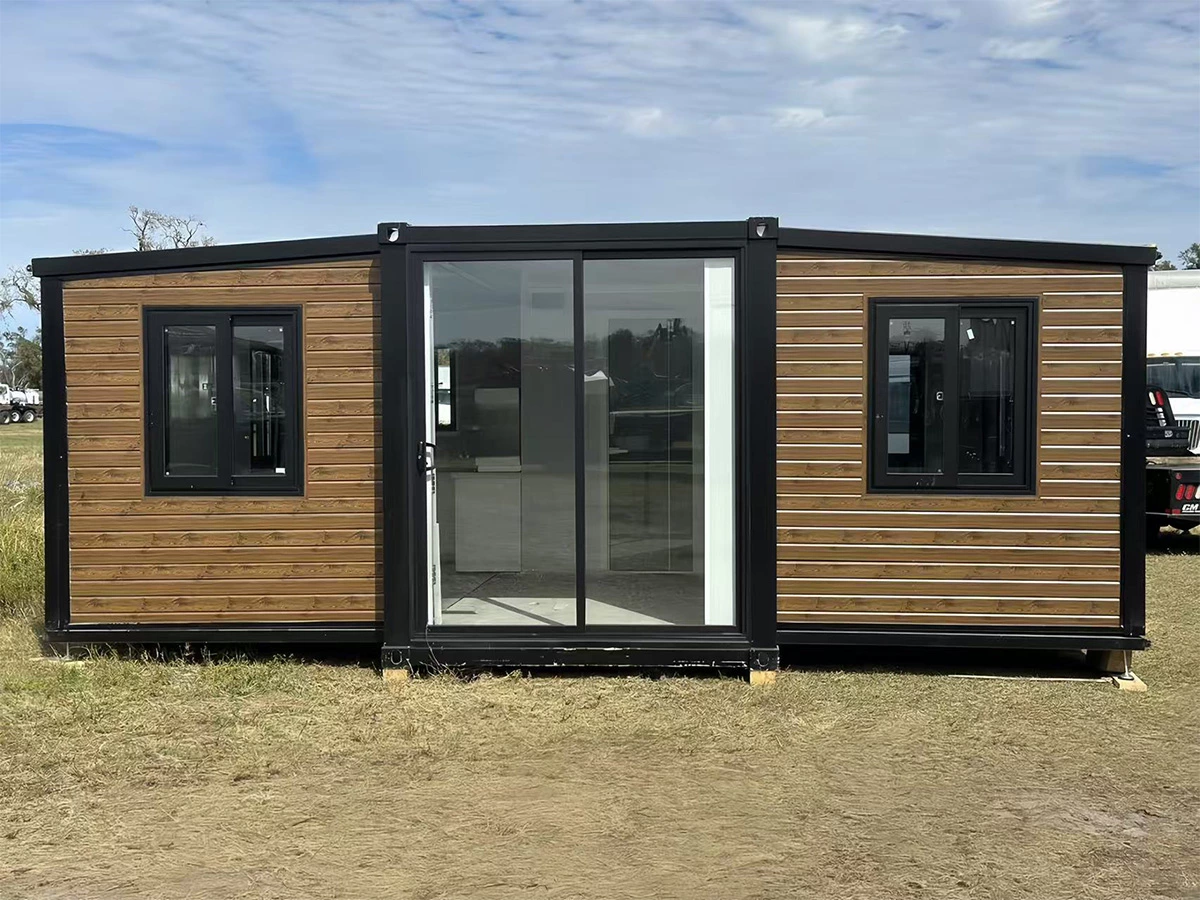

This case study follows a Texas family who found a different answer: a UVO 20ft expandable container home installed in their backyard, delivering 38 m² (409 sq ft) of fully liveable space — without the cost, timeline, or disruption of traditional construction.
Once installed, the family of three settled in comfortably. The experience was compelling enough that they shared it on social media — writing that it felt "better than the overpriced homes in the school district." Their post sparked a wave of enquiries for UVO across Texas.
Why This Family Chose a Factory-Built Expandable Home
- Speed: Arrived ready to unfold — installation took 2 days, not 6–12 months
- Cost predictability: Factory pricing eliminated on-site labour variables that routinely push Texas construction budgets 20–30% over estimate
- Right-sized: 38 m² (409 sq ft) purpose-built for single occupancy or couple living — not oversized, not cramped
- Zero disruption: No crew on-site for months, no structural work to the main house
Project Specifications
| Parameter | Detail |
| Configuration | 1 bed / living area / kitchen / full bathroom |
| Expanded usable area | 38 m² / 409 sq ft |
| External dimensions (expanded) | W 6,060mm × L 6,058mm × H 2,591mm |
| Folded (shipping) dimensions | W 2,438mm × L 6,058mm × H 2,591mm |
| Gross weight | Approx. 3,800 kg |
| Deployment | Backyard residential, Texas, USA |
| On-site installation time | 2 days |
Interior Layout
Bedroom — Full-size bed configuration with built-in wardrobe and natural light from the side glazing panels.
Living Area — Open-plan zone with large sliding glass door on the expansion wing; direct indoor-outdoor connection suited to Texas's outdoor lifestyle.
Kitchen Zone — Pre-plumbed counter with sink, space for compact refrigerator and countertop cooking unit; overhead ventilation pre-routed.
Bathroom — Full wet/dry separation. Shower cubicle, toilet, vanity sink, instant hot water system pre-installed.
Exterior
- Wall system: 50mm composite insulated sandwich panel — steel skin / polyurethane foam core / steel interior skin
- Windows and doors: Double-glazed tempered glass sliding doors and fixed windows; aluminium frames with thermal break
- Roof: Metal roof with integrated waterproof membrane, 5° drainage pitch
- Finish: Powder-coated steel in client's specified colour; UV-stable coating rated for Texas sun exposure
Built for Texas: Climate Performance
Texas is not a mild climate. Summer temperatures regularly exceed 40°C (104°F) inland, the northern plains sit in Tornado Alley, and the Gulf Coast faces hurricane exposure. Here is how the unit addresses each condition.
Heat Management
The 50mm polyurethane core delivers approximately R-13 insulation value — equivalent to a standard US timber-framed wall. In Texas summer conditions, the interior runs 8°C lower than ambient outdoor temperature without active cooling.
The unit is pre-wired for a standard mini-split air conditioning system (220V, 30A circuit pre-installed). A 12,000–18,000 BTU inverter mini-split handles the 409 sq ft space comfortably even at peak Texas summer temperatures.
Wind Load
The welded steel frame is rated to ASCE 7 Exposure Category C wind loads — significantly stronger than standard light timber framing. For Gulf Coast deployments within the TDI Windstorm Inspection Zone (14 coastal Texas counties), UVO provides supplementary structural documentation to support TDI compliance.
Texas ADU Permit Rules: City-by-City Guide
Texas has no statewide ADU law — each city makes its own rules. Here is the current status across the major markets.
Houston
The most permissive large city in the US — the only major city with no citywide zoning ordinance.
- ADU permitted: Yes, on any residential lot meeting minimum size
- Building permit required: Yes, for structures over 200 sq ft or connected to utilities
- Setbacks: Typically 3 feet side/rear (verify with Harris County or specific MUD district)
- Permit timeline: 4–8 weeks in Harris County
Austin
One of Texas's most ADU-friendly cities, with legislation designed to increase housing supply.
- ADU permitted: Yes — SF-1, SF-2, SF-3 zoned lots (most residential Austin)
- Maximum ADU size: 1,100 sq ft (20ft unit at 409 sq ft is well within limit)
- Setbacks: 5 feet side and rear
- Owner-occupancy requirement: Removed for most zones
- Permit timeline: 4–8 weeks through Austin Development Services Department
Dallas
- ADU permitted: Yes — single-family residential districts
- Maximum ADU size: 1,000 sq ft for detached units
- Setbacks: 5 feet rear, 3 feet side; 15 feet from primary structure
- Minimum lot size: Typically 6,000 sq ft total — verify by district
What UVO Provides for Your Permit Application
- PE-stamped structural calculations (Texas-licensed engineer)
- UL-certified electrical wiring documentation
- Floor plan and elevation drawings
- Anchor point and foundation load specifications
- Thermal performance data (IECC climate zone compliance)
- Material specifications and certifications
| Certification | What It Means for Texas Buyers |
| UL (Underwriters Laboratories) | US electrical safety standard; required for utility connection in all Texas municipalities |
| ISO 9001 | Factory quality management certification |
| CE | European structural standard demonstrating engineering rigour alongside IRC alignment |
| IRC-aligned engineering | Structural parameters match the International Residential Code adopted by most Texas jurisdictions |
Factory to Your Texas Backyard: Full Timeline
Weeks 1–4: Factory production Built, fitted, and inspected. Exterior colour, interior finish, and equipment layout confirmed in week one.
Weeks 4–6: Ocean freight Ships to the Port of Houston (largest US port by total tonnage) or Port of Beaumont/Galveston. Transit: approximately 20–28 days.
Week 6–7: Customs and inland delivery US customs handled by your freight forwarder. Flatbed truck delivery to site — same-day within Houston metro; 1–2 days to Dallas, Austin, or San Antonio.
Days 1–2 on-site: Installation Crane positions unit on prepared foundation. Expansion wings unfolded, locked, levelled. Waterproof seals applied. Utility connections by local licensed contractors: 1–2 additional days.
Frequently Asked Questions
Is a 20ft expandable container home legal as a backyard ADU in Texas?
Yes, in most Texas cities including Houston, Austin, Dallas, San Antonio, and Fort Worth — provided the installation meets local building codes and obtains the required building permit. See the city-by-city guide above for specifics.
Do I need a building permit for a backyard expandable home in Texas?
Yes. Any habitable structure over 200 sq ft or connected to utilities requires a building permit in virtually all Texas jurisdictions. UVO provides a full PE-stamped documentation package to support your application.
How does the unit handle Texas summer heat?
The 50mm polyurethane insulated panel system keeps interior temperatures approximately 8°C lower than ambient. Pre-wired for a mini-split air conditioning system that efficiently handles the 409 sq ft space across all Texas climate zones.
How long does delivery from China to Texas take?
Ocean freight to the Port of Houston takes approximately 20–28 days. Total factory-to-site: 55–70 days from order confirmation.
Can I rent this out as an ADU in Texas?
Yes. Texas has no state owner-occupancy requirement for ADUs, and major cities including Austin and Houston have removed local owner-occupancy restrictions. Texas also has no state income tax on rental income.
What wind resistance does it have for Gulf Coast or tornado-prone areas?
The welded steel frame is rated for ASCE 7 Exposure Category C wind loads. For Gulf Coast installations in the TDI Windstorm Inspection Zone, UVO provides supplementary structural documentation to support TDI certification.
