7500mm
3000mm
4600mm
29.4㎡

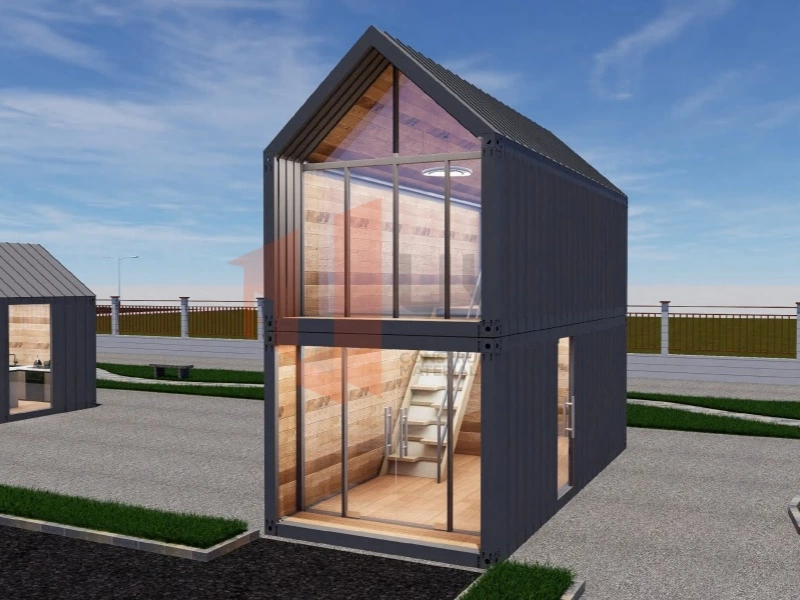

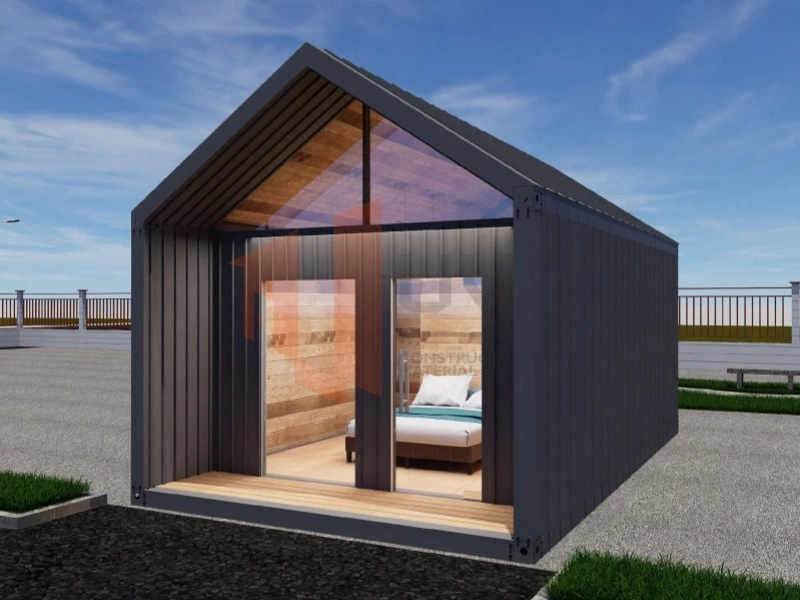

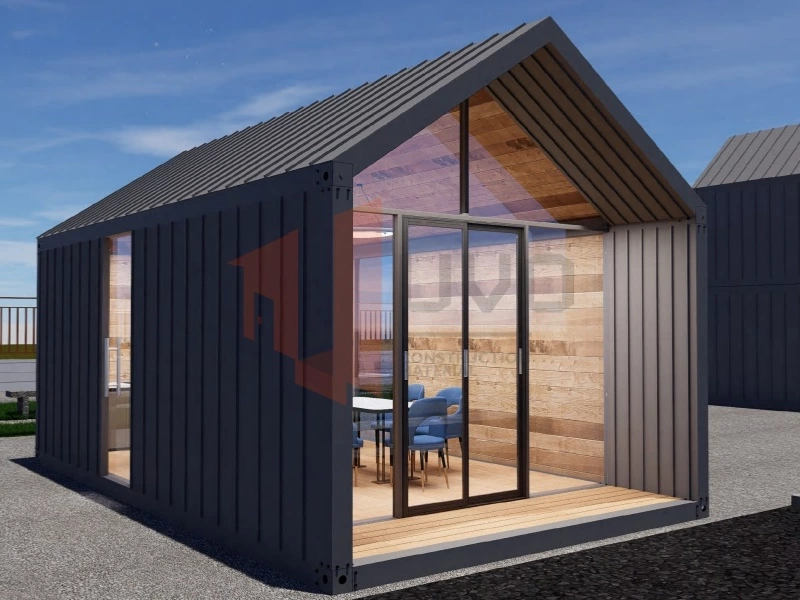

Engineered for modern outdoor living, boutique hospitality, and private backyard sanctuaries, the UVO 2-Story A-Frame Triangle Tiny Cabin combines iconic geometric aesthetics with optimized two-level functionality. Built with an ultra-durable galvanized steel frame and high-performance insulation, this two-story modular cabin maximizes vertical headroom, creating an open, light-filled sanctuary that stands out in any landscape.
Full ground floor living space + private upper master loft.
Vaulted ridge design allowing comfortable adult standing height in the upper loft.
Certified against high snow loads (1.3 kN/m²) and wind resistance up to 133 km/h (Level 11–12).
Factory-prefabricated components assemble on-site in days with zero specialized crane requirements.
| Specification Item | Details & Parameters |
| Model | UVO 2-Story A-Frame Triangle Tiny Cabin |

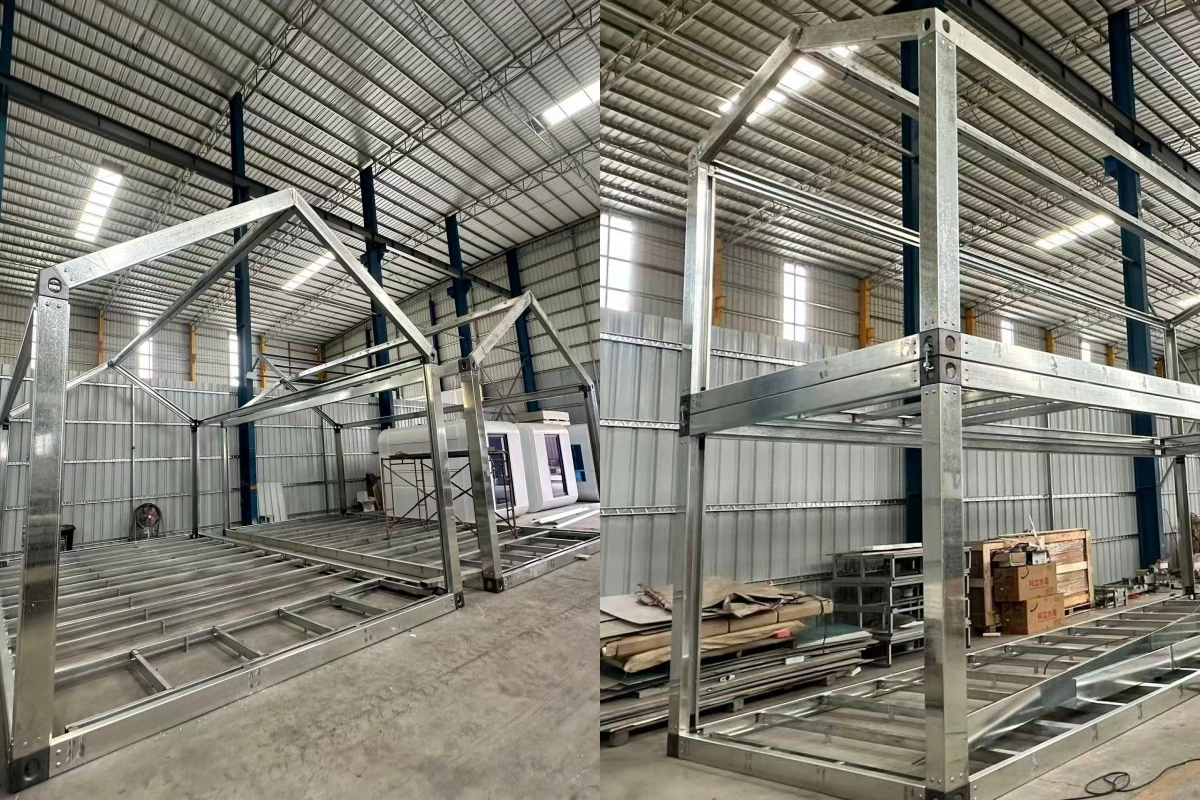

| Structure | Q235 Heavy-duty Galvanized Steel Columns & Ridge Beams |
| Footprint Dimensions | Customizable (e.g., 6.0m × 8.7m / Total Ridge Height: ~5.5m) |
| Total Usable Area | ~30㎡ (Combined Ground Floor + Upper Loft) |
| Wall & Roof Insulation | 75mm / 100mm Rock Wool Core (A-Grade Fire Rating) |
| Glass System | Double-layer Insulated Tempered Low-E Glass (5+12A+5) |
| Flooring System | 18mm MGO Base Board + 4mm Heavy-Duty Waterproof SPC |
| Wind Resistance | Level 11–12 / 103–133 km/h (Compliant with ASCE 7 Standards) |
| Snow Load Capacity | 1.3 kN/m² (Designed for Northern Europe & North America) |
| Container Loading | Flat-packed; 2 Complete Units per 40ft HQ Container |
Bring surrounding nature indoors while maintaining superior thermal efficiency:
Built to withstand harsh environments from snowy Nordic mountain ranges to humid coastal shorelines:
Traditional triangular cabins often suffer from tight, claustrophobic upper spaces. UVO’s engineered 2-story architecture redefines the A-frame experience by optimizing structural angles to deliver ample headroom across both levels:
For boutique hotel developers, campsite operators, and Airbnb hosts, the UVO 2-story A-frame is designed to accelerate your return on investment:

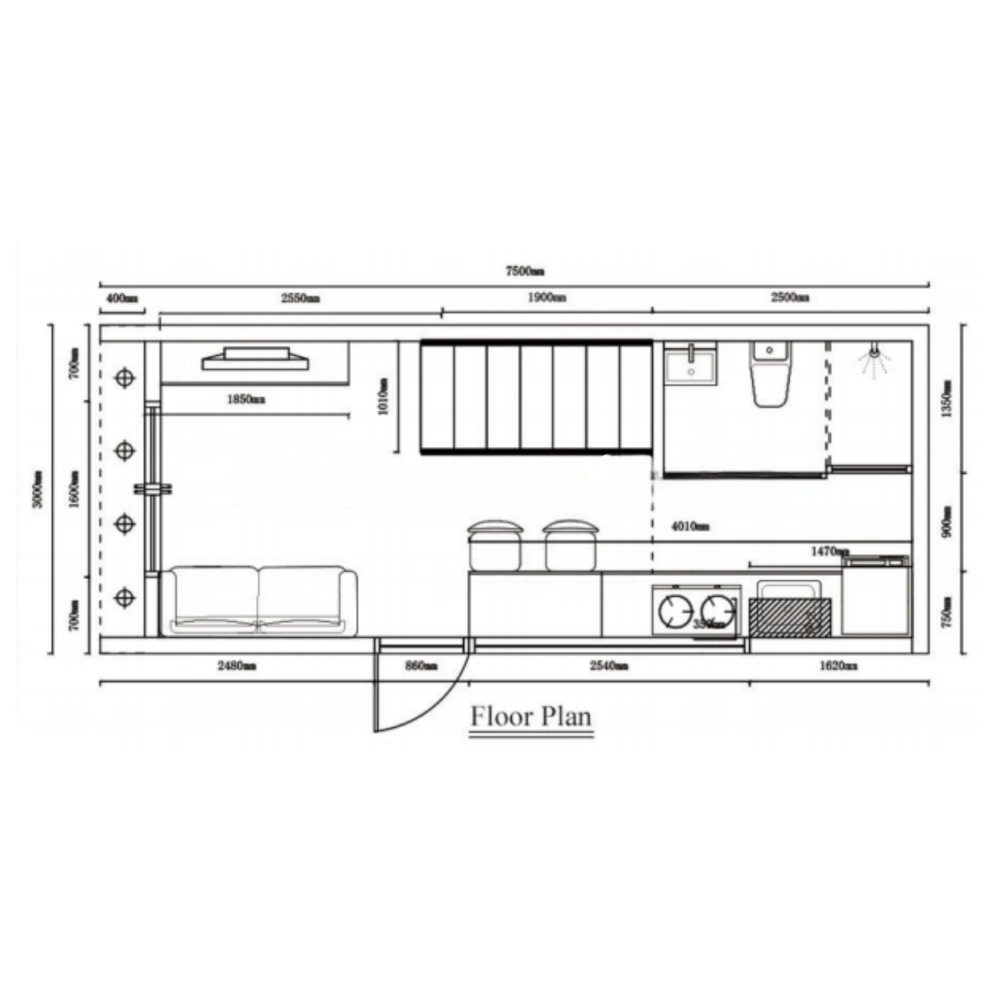

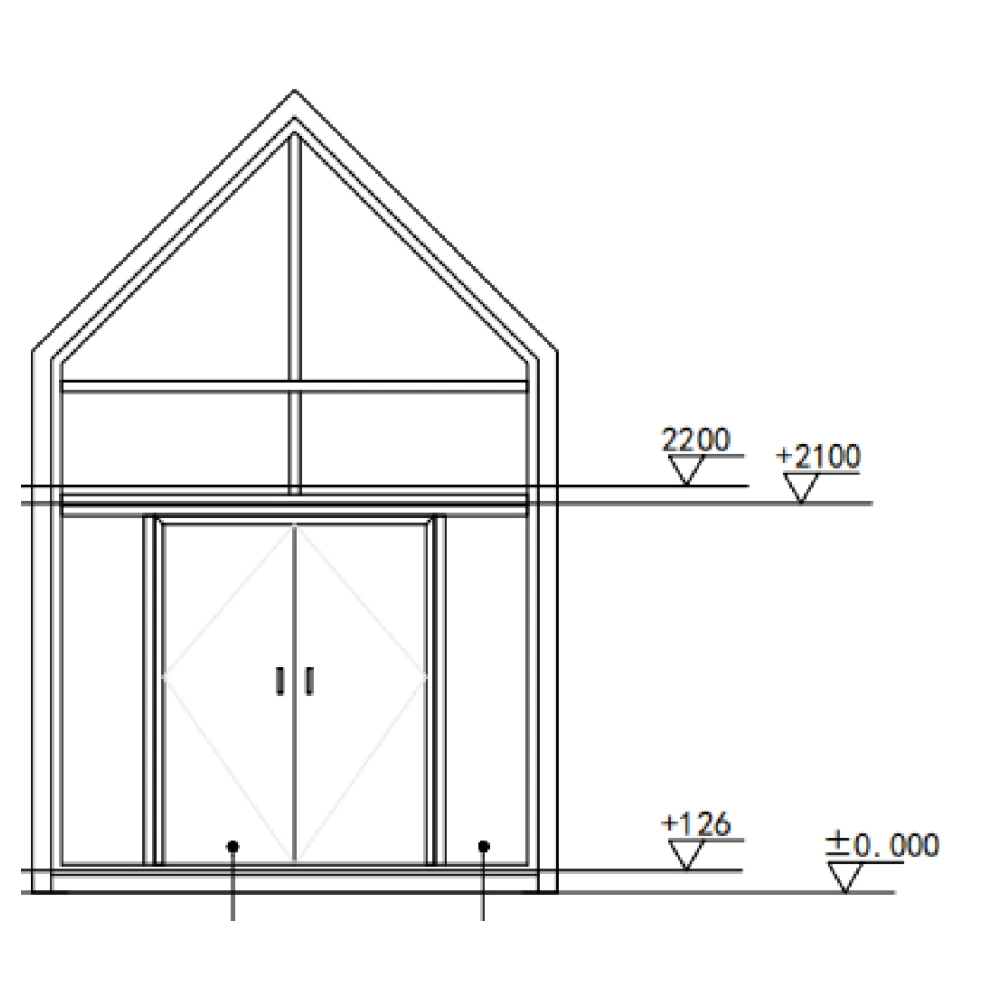

Horizontal Layout Dimensions

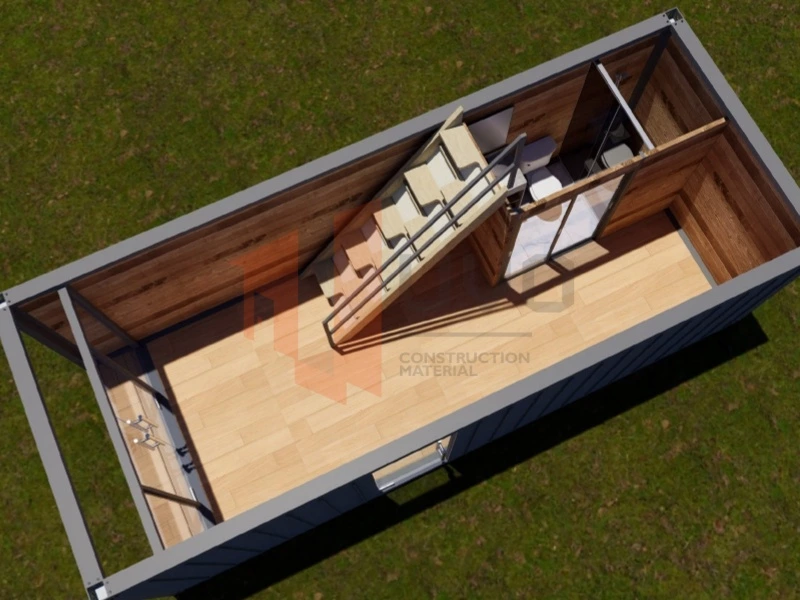

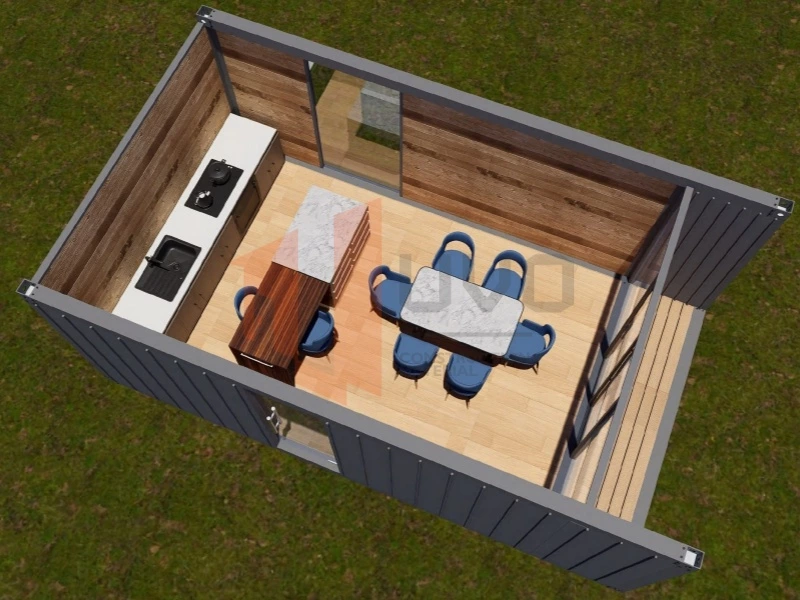

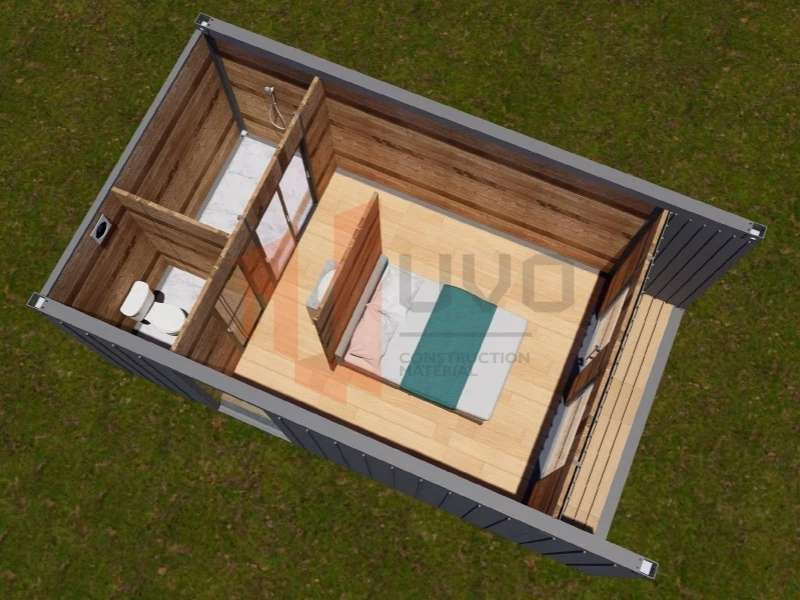

Ground Floor Layout

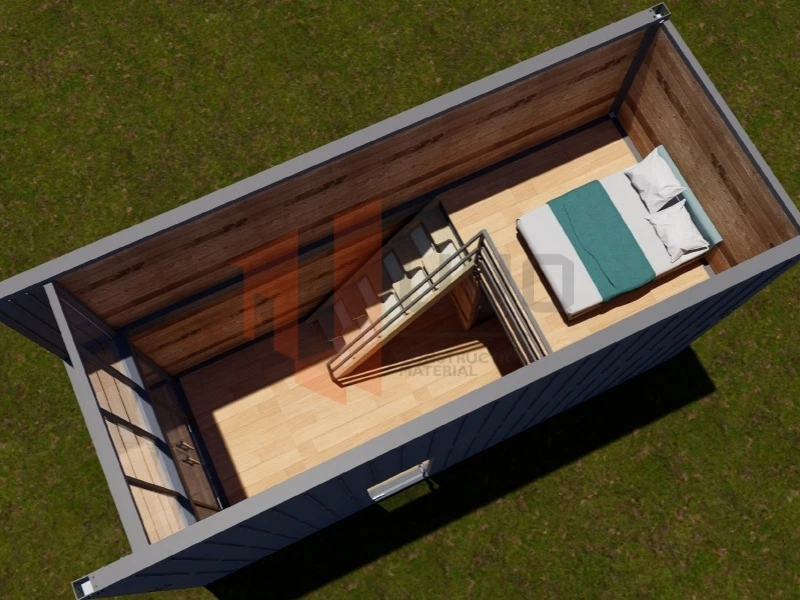

Upper-level Layout
Minimum order quantity is 1 unit — suitable for individual homeowners, boutique glamping sites, or backyard ADU installations.
Due to our optimized modular flat-pack packaging, a standard 40ft High Cube container can accommodate 2 complete two-story structural and cladding kits.

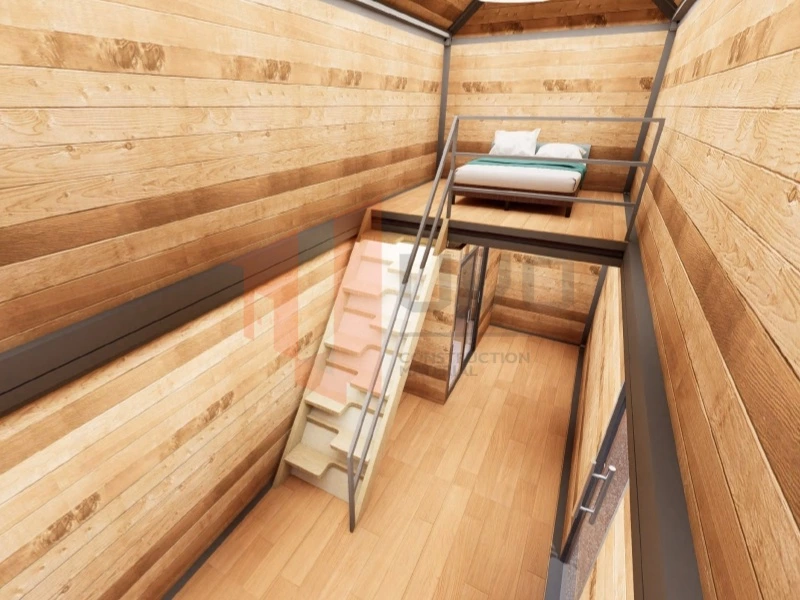

Yes. The structural frame is engineered with an extended vertical pitch, providing approximately 2.1m–2.3m of center-ridge clearance in the upper loft, allowing adults to move freely without feeling cramped.
Unlike low-cost cabins that use steep vertical ladders, UVO supplies an ergonomic wooden or steel staircase with integrated handrails and safety balustrades, ensuring safe day-and-night access for guests and families.
Yes. Both the walls and roof use high-density glass wool or polyurethane sandwich panels as primary materials, effectively blocking external heat transfer. This maintains a consistent, comfortable indoor temperature on both floors and improves overall energy efficiency.
Standard production lead time is 30–40 days from order confirmation and deposit. Ocean transit adds 25–42 days depending on destination port.
Yes — as a permanent-style two-storey modular home, this unit requires a building permit in most jurisdictions. UVO provides a complete documentation package (structural engineering certificate, floor plans, elevation drawings, material compliance certificates) to support your permit application. Requirements vary by location — contact UVO for country-specific guidance.
Yes. When constructed on a compliant foundation and connected to local water, sewage, and power infrastructure, the cabin's structural engineering meets permanent modular residential building standards (IBC/CE).
The cabin is delivered in packaged modular components compatible with standard shipping containers and flatbed trucks. On-site assembly involves connecting the pre-fabricated modules using the provided hardware. A team of 4–5 workers can complete full assembly in approximately 3 days. A small crane or forklift is required for lifting the upper floor structure into position.
Suitable foundation types include concrete slab foundations, concrete strip foundations, or screw pile foundations, depending on your local soil conditions and seismic requirements.
The G550 galvanised steel main structure has an engineered lifespan of 25–30 years with standard maintenance (annual sealant inspection and anti-corrosion touch-up). The structural warranty covers frame integrity for 10 years from delivery.
