40ft Expandable Container Home Delivered to California, USA

Publish Time:

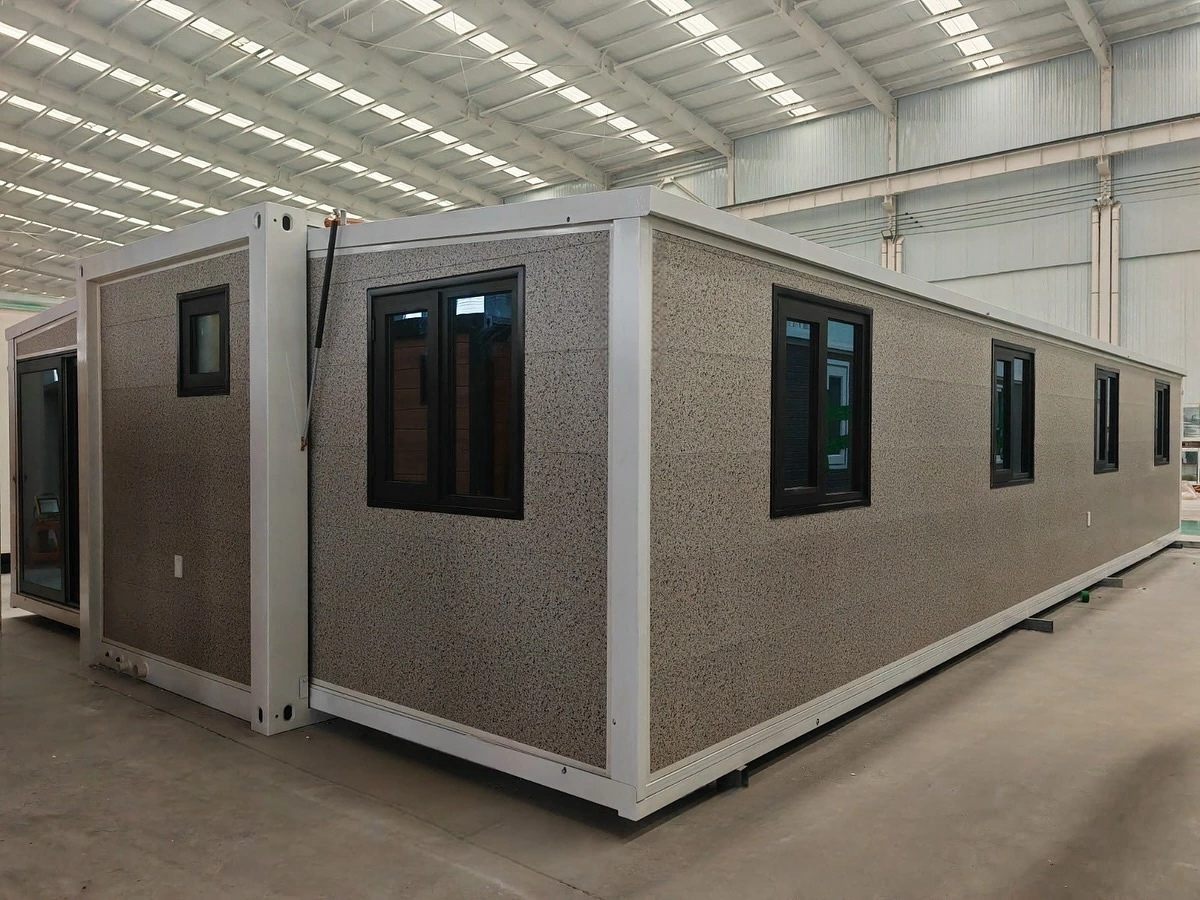

40ft expandable container house installed as a 3-bedroom permanent residence in Southern California, USA

Customized 40ft Expandable Container House Delivered to California, USA

California is the most expensive place to build a home in the United States. Construction costs in Los Angeles range from $200 to $450 per square foot for standard residential builds; in the Bay Area, that figure climbs to $400–$1,200 per square foot. The median home price statewide sits at approximately $775,000 — more than twice the national median.

For this California-based client, the decision to go with a factory-built expandable container home was straightforward: they needed a permanent, code-compliant, three-bedroom residence delivered and installed in a fraction of the time and cost of local construction.



Why This Client Chose UVO Over Local Construction

The client's core requirements were clear from the start: a long-term owner-occupied home, fully compliant with US building codes, with a realistic delivery timeline and a predictable total cost.

Compared to commissioning a traditional site-built home in California, a UVO factory-built expandable unit offered three decisive advantages:

  • Cost control: Factory production eliminates California's high on-site labour costs. No unexpected overruns from subcontractor scheduling or material delays
  • Speed: The home arrives largely complete — site work is limited to foundation preparation and utility connection
  • Compliance-ready: UVO builds to US standards from the factory floor, meaning the documentation package is ready for permit submission from day one

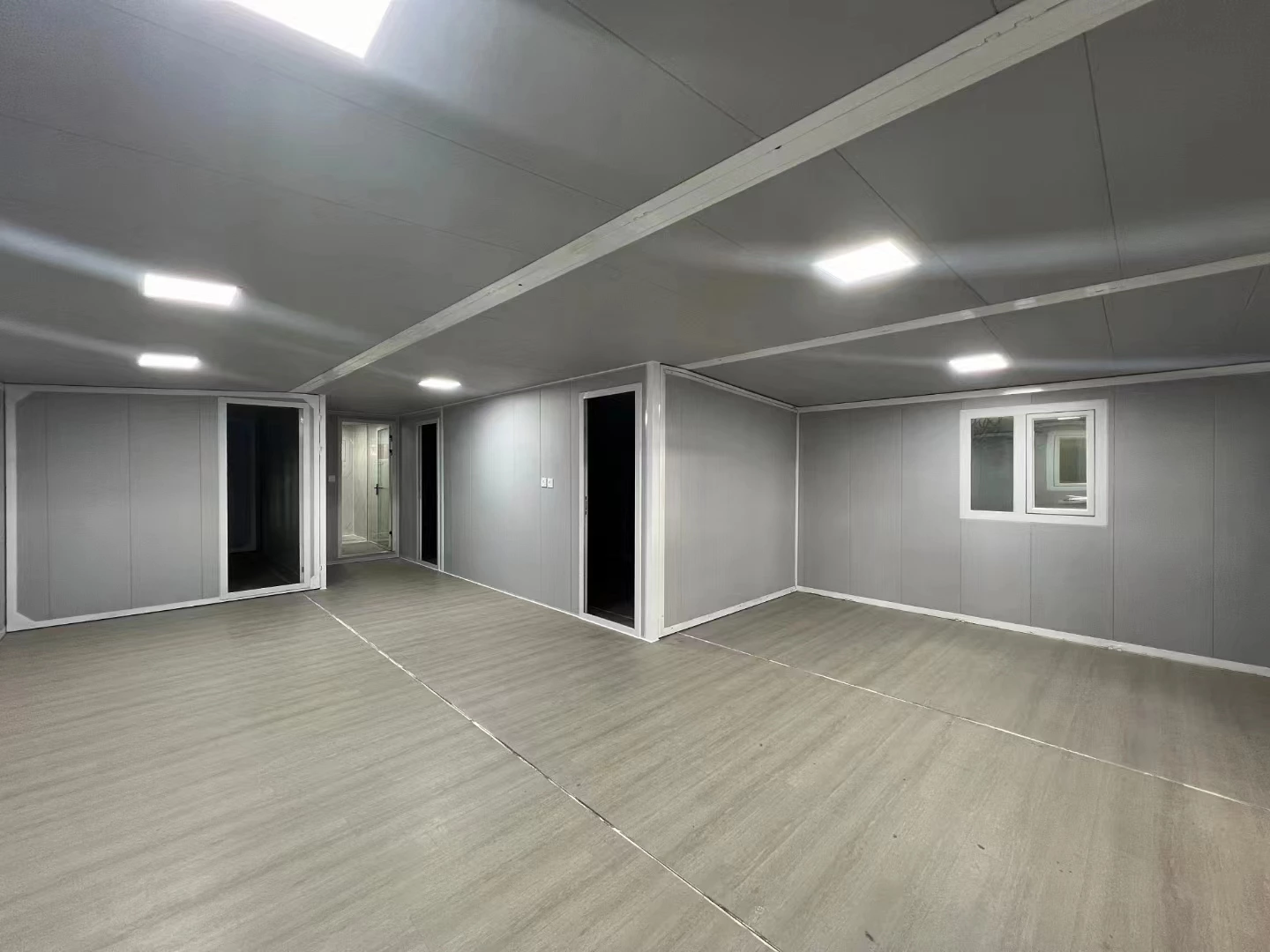

Turnkey interior living area and pre-installed kitchen inside a California ADU-compliant 40ft expandable home

Project Specifications

Model: UVO 40ft Expandable Container House — 3 Bedroom Configuration Use: Long-term owner-occupied residential Delivery: California, USA Expanded Living Area: Approximately 74 m² (~797 sq ft)

Dimension Measurement
External (expanded) W 6,240mm × L 11,800mm × H 2,480mm
Internal (usable) W 6,080mm × L 11,540mm × H 2,200mm
Folded (shipping state) W 2,200mm × L 11,800mm × H 2,480mm
Gross weight Approx. 6,200 – 6,500 kg



Optimized Floor Plan: The Ultimate 3-Bedroom Layout for California Families

When evaluating a 40ft expandable container house for sale in the USA, homeowners often worry about interior cramping. However, as shown in the 3D floor plan below, UVO has mastered the art of maximizing interior space. This specific 40ft expandable house floor plan delivered to California provides approximately 800 sq. ft. of climate-controlled living area, cleverly partitioned into a high-density, high-comfort 3-bedroom configuration.

Key Features of this 3-Bedroom Expandable Container House:

  • Strategic 3-Bedroom Zoning: Unlike standard modular units, this layout features a large master suite on the far left and two dedicated secondary bedrooms. This makes it an ideal 3-bedroom expandable container house for growing families or multi-tenant rental investments.
  • Centralized Open-Plan Living: The "heart" of the home is a spacious central hub that integrates the living room and a four-person dining area. The flow is designed to feel like a traditional stick-built home, eliminating the "tunnel" feeling often associated with container living.
  • Full-Service Kitchen & Bath: The floor plan includes a factory-pre-installed L-shaped kitchen and a full bathroom with wet/dry separation. All plumbing is WaterMark and UPC compatible, ensuring a smooth California ADU permit inspection.
  • California ADU Sweet Spot: In the context of California’s SB 1211 and AB 1033 laws, this California ADU layout is a game-changer. It provides the maximum number of legal bedrooms allowed for most detached ADUs while staying comfortably under the 1,200 sq. ft. statewide limit.

By utilizing this permit-ready modular home layout, the client was able to offer a premium rental product in the California market that commands a 30% higher monthly rent than typical 1-bedroom ADU alternatives.

3-bedroom floor plan layout for a 74 sqm (800 sq ft) 40ft expandable container house meeting California ADU codes

The Challenge: California’s ADU Boom & Strict Building Codes

As California continues to lead the nation in Accessory Dwelling Unit (ADU) development under laws like SB 9 and AB 1033, homeowners are seeking fast, cost-effective alternatives to traditional stick-built construction. For this residential project in Southern California, the client required a spacious, turnkey secondary dwelling that could pass the state's rigorous building and energy standards without the typical 12-month construction delay.

To meet these rigorous municipal demands, this project utilized our flagship 40ft expandable container house chassis, specially engineered and upgraded for the US market.



Engineering for California (CBC) & Title 24 Compliance

Building in California means addressing two major environmental factors: seismic activity and strict energy efficiency mandates.

  • Seismic Resilience: The core chassis was fabricated using cold-formed G550 and Q235B high-tensile galvanized steel. This high-ductility steel framework is engineered to absorb ground shock, meeting stringent California Building Code (CBC) seismic zone requirements.

  • Title 24 Energy Efficiency: To comply with California's Title 24 energy envelope standards, the unit was insulated with continuous 75mm high-density Polyurethane (PU) sandwich panels (R-21+ rating). Combined with thermally broken aluminum frames and Low-E dual-pane tempered glass, the home drastically reduces HVAC cooling loads during scorching California summers.



Logistics: Port of Long Beach to Jobsite

Our streamlined multi-modal logistics ensured a hassle-free delivery from our factory to the client’s backyard:

  • Ocean Freight: Folded to a compact 2,200mm width, the home was shipped as a standard 40HQ container directly to the Port of Long Beach (POLB), clearing US Customs (CBP Form 7501) and EPA requirements seamlessly.

  • Inland Transit: Because the folded profile complies with US Department of Transportation (USDOT) width limits, it was hauled via a standard step-deck flatbed trailer straight to the residential neighborhood—eliminating the need for expensive wide-load highway escorts.



US Utilities & 3-Hour Rapid Deployment

Once on site, a local mobile crane lifted the 6,500 kg structure onto a pre-engineered concrete foundation. The client’s local contractor team mechanically deployed the subfloors, expanded the insulated walls, and bolted the roof watertight in under 3 hours, to ensure proper crane rigging and on-site job safety, consult our comprehensive expandable container house installation guide and precautions.

Crucially, the unit arrived pre-wired with an internal distribution panel compliant with the National Electrical Code (NEC 2023) for 120V/240V split-phase power. A licensed California electrician simply connected the 200A main service line to the exterior NEMA junction box, while plumbers tied the pre-installed PEX-A lines into the property's existing municipal water and sewer system.

By choosing an engineered modular solution, the homeowner successfully bypassed months of on-site labor, securing a high-yield, permit-ready ADU at a fraction of local California construction costs.



Frequently Asked Questions

Is a 40ft expandable container home legal in California?

Yes. Prefabricated container homes are legal in California when they meet IBC/IRC building codes and obtain the required building and use permits from the local municipality. UVO's ICC-ES certification and PE-stamped documentation support the permit application process.

Can I use this as an ADU in Los Angeles, the Bay Area, or San Diego?

Yes. The 40ft unit at ~797 sq ft falls within California's 1,200 sq ft ADU size limit. It qualifies as a detached ADU on residential lots meeting minimum size requirements. Local zoning, setback rules, and HOA covenants (if applicable) should be verified before purchase.

Does the unit come with documentation for California building permit applications?

Yes. Every California delivery includes an ICC-ES assessment report, PE-stamped structural calculations, CARB/EPA material certifications, NEC-compliant wiring documentation, and a Title 24 thermal performance report.

How long does shipping from China to California take?

Ocean freight from our factory to the Port of Los Angeles or Long Beach typically takes 18–25 days. Combined with production, most clients receive their unit within 60–75 days of order confirmation.

What foundation does it need in California's earthquake zones?

A reinforced concrete slab or pier foundation designed for the seismic design category (SDC) of your specific location is required. We provide anchor point specifications and load drawings — your local licensed contractor completes the foundation design and pour.

Q: How does it handle California's heat? Is it suitable for inland areas?

Yes. The unit uses a thermally broken structure with high-performance insulation, rated to meet California Title 24 energy efficiency standards. The 2mm exterior steel panels are UV-rated for prolonged high-temperature exposure. The unit is suitable for coastal, inland, and high-desert California climates.
