20ft Expandable Container House for Sale USA — 2 Bedroom American Standard
Looking for a 20ft expandable container house built to American standards, complete with 2 bedrooms, and ready for US delivery? This project page documents UVO's production-ready 2-bedroom configuration — built to IBC structural standards and NEC-compliant electrical specifications — with full cost breakdown, floor plan layout, and a real-world delivery case study.
Project Overview
| Project Detail | Information |
|---|---|
| Target market | USA and American standard markets |
| Model | UVO 20ft Expandable Container House — 2 Bedroom |
| Expanded floor area | ~37㎡ (398 sq ft) |
| Configuration | 2 bedrooms + 1 living room + 1 kitchen + 1 bathroom |
| Structural standard | IBC (International Building Code) compliant |
| Electrical standard | NEC / NFPA 70 — US 110V/120V, UL-listed components |
| Exterior cladding | Sandstone-coloured metal carved panels (UV-resistant, anti-corrosion) |
| Primary use cases | Permanent residence · ADU / granny flat · Airbnb · Workforce housing |
| Ex-factory reference price | From $10,000 (shell) / From $15,000 (full fit-out) |
| All-in landed cost USA | From $28,000 |
| Certifications | CE · UL · ISO 9001 · IBC structural certificate |
20ft Expandable Container House 2 Bedroom: Floor Plan
At 37㎡ (398 sq ft) fully expanded, the 20ft expandable container house 2-bedroom layout is designed to maximise usable space within a compact footprint — making it the most popular configuration for US backyard ADU, Airbnb, and workforce housing applications.
Standard 2BR Floor Plan Layout
Alternative configurations available:
- 1BR + Home Office: Convert Bedroom 2 to dedicated workspace with data outlets
- 1BR + Living Suite: Merge Bedroom 2 into extended open-plan living area
- Studio (open plan): Remove bedroom partition for maximum open space
All floor plan configurations are specified at the factory production stage — no on-site structural modification required.
Full Technical Specifications: American Standard Build
Structural System
| Component | UVO Specification | IBC Compliance |
|---|---|---|
| Frame steel grade | G550 galvanised steel (2.3mm) | IBC Chapter 22 |
| Yield strength | 550 MPa (2.3× standard Q235) | yes |
| Wind resistance | Level 11 (130 mph) | ASCE 7-22 |
| Snow load | County-specific engineering certificate | IBC Chapter 16 |
| Seismic resistance | Grade 8 equivalent | IBC Chapter 16 |
| Galvanisation | ≥180g/㎡ (≥275g/㎡ coastal spec) | yes |
| Engineered lifespan | 25–30 years | yes |
Insulation & Energy Performance (US Climate Zones)
| Component | Standard Spec | Cold Climate Upgrade |
|---|---|---|
| Wall panels | 75mm EPS — R-15 | 100mm Rock Wool — R-23 |
| Roof insulation | 50mm glass wool — R-11 | 100mm high-density glass wool — R-38 |
| Floor insulation | Standard subfloor | 75mm PIR board — R-30 |
| Window glazing | Double-glazed | Low-E double-glazed U-0.30 |

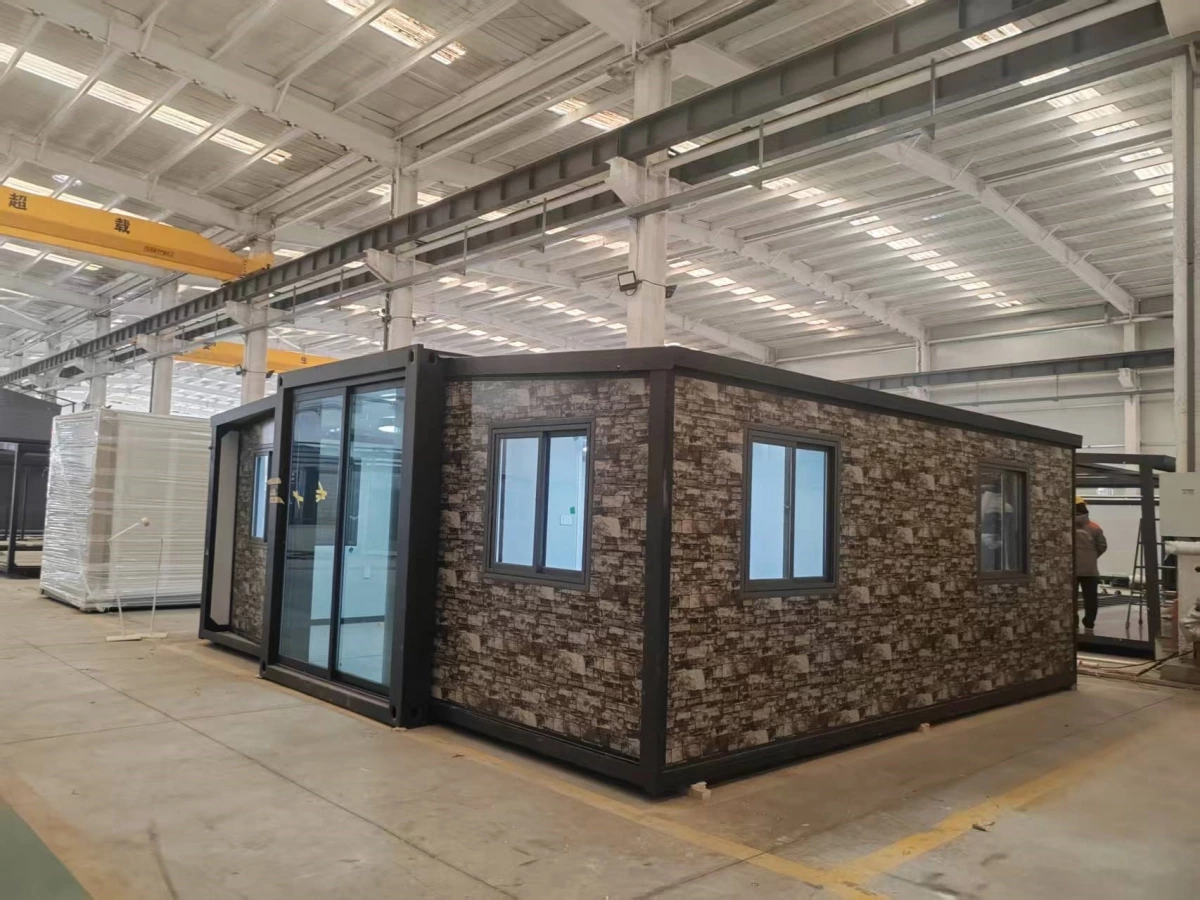

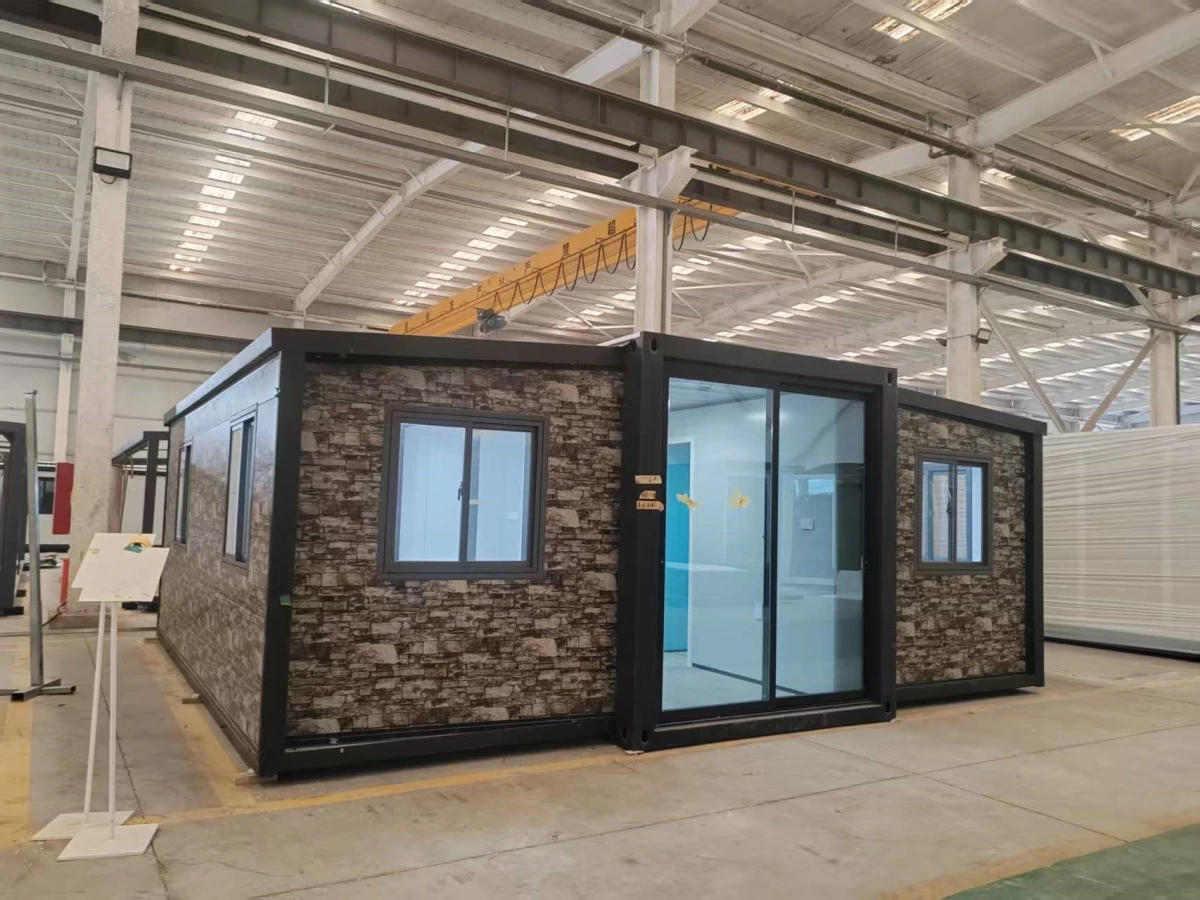

Exterior Design
The 20ft expandable container house for sale USA uses a high-quality sandstone-coloured metal carved panel facade — the most popular exterior choice for US residential and ADU applications. Key performance properties:
- UV resistance: PVDF coating prevents colour fading in high-UV climates (Arizona, California, Texas)
- Waterproofing: Sealed panel system — IP54 rated moisture protection
- Anti-corrosion: Suitable for coastal installations (salt spray resistance)
- Thermal break: Composite panel construction minimises thermal bridging
- Low maintenance: No repainting required — 15–20 year colour retention
US Electrical System (NEC / NFPA 70 Compliant)
This is the feature that separates UVO's American standard expandable container house from non-US-spec imports — and the reason US buyers can connect it directly to their home electrical service without rewiring.
| Component | UVO US Standard Specification |
|---|---|
| Code compliance | NFPA 70 (NEC) — full compliance |
| Voltage | 120V/240V split-phase (US standard) |
| Distribution panel | US breaker panel with circuit labelling |
| Standard outlets | UL-certified 3-prong US outlets throughout |
| USB powerpoints | Dual USB-A/USB-C integrated into living room and bedroom outlets |
| GFCI protection | NEC 210.8 compliant — bathroom and kitchen circuits |
| Bedroom circuits | AFCI breakers (NEC 210.12 compliant) |
| Lighting | LED ceiling lights throughout (energy code compliant) |
| Switch system | Standard US rocker switches |
| UL listing | All electrical components UL-listed |
Door and Window System
| Component | Specification |
|---|---|
| Main entry door | High-strength steel security door — lockable, weathersealed |
| Bedroom doors | Solid core interior doors with privacy locks |
| Windows | Aluminium alloy sliding windows — double-glazed |
| Window performance | Smooth operation, full weatherstrip seal, mosquito screen option |
| Sliding door option | Full-height glass sliding door upgrade available |
Kitchen (Factory Pre-Installed)
| Item | Specification |
|---|---|
| Sink | Stainless steel basin with pull-down mixer faucet |
| Benchtop | Durable composite surface |
| Cabinets | Overhead cabinets + under-bench storage |
| Flooring | Custom SPC waterproof flooring in kitchen zone |
| Pre-installation | Water inlet and outlet pre-connected at factory — plug and play on-site |

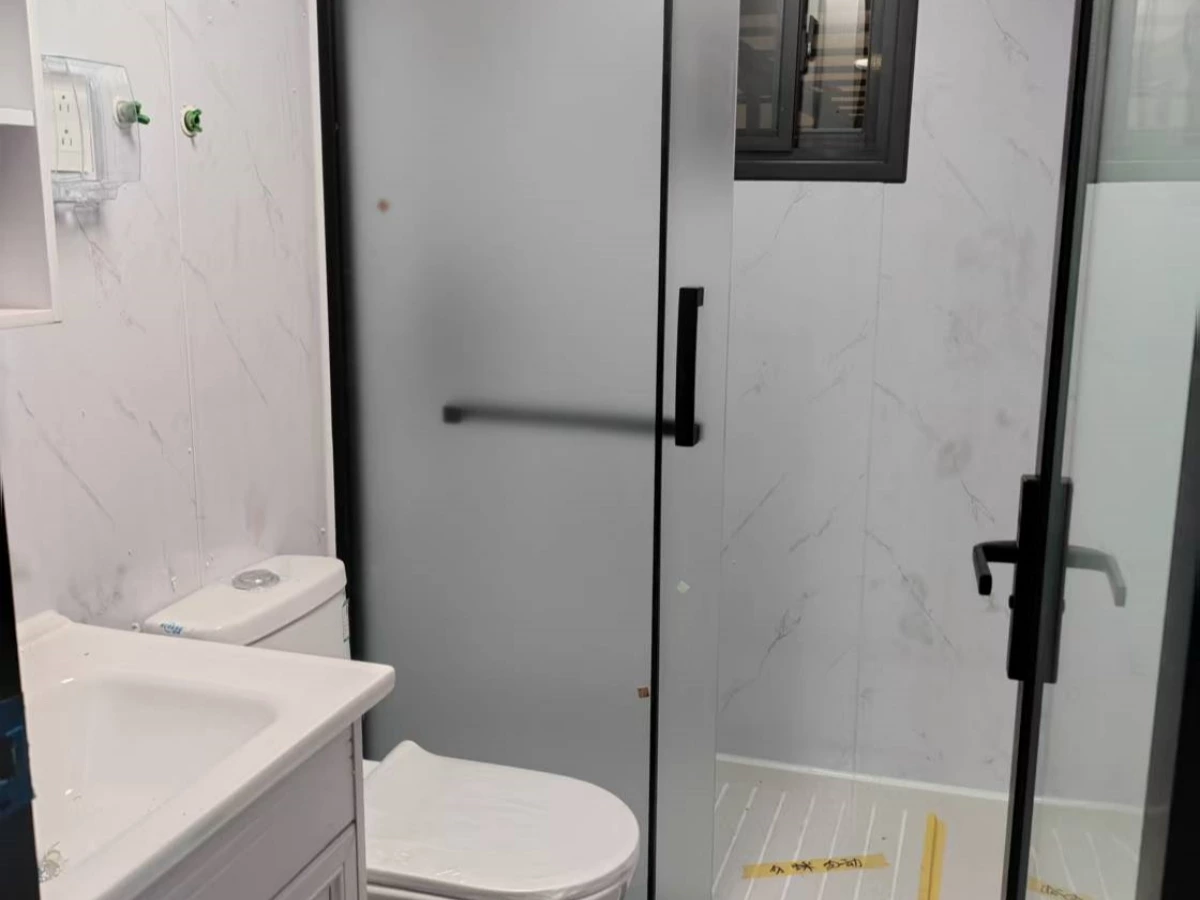

Bathroom (Factory Pre-Installed, Wet/Dry Separation)
| Item | Specification |
|---|---|
| Shower | Sliding glass shower door + dual showerheads |
| Toilet | Full-flush toilet (UVO standard) |
| Vanity | Basin + vanity storage below |
| Exhaust | Ceiling exhaust fan (NEC circuit) |
| Waterproofing | Full wet area waterproofing completed at factory |
| Floor drain | Stainless steel floor drain |
| Separation | Wet zone (shower) fully separated from dry zone (vanity/toilet) |
20ft Expandable House 2 Bedroom: Price Breakdown USA
This is what most US buyers need before making a decision — and what most supplier pages avoid providing.
Ex-Factory Price
| Configuration | Ex-Factory Price | What's Included |
|---|---|---|
| Shell only (no fit-out) | $6,000–$10,000 | Frame, panels, windows, doors |
| Standard fit-out | $10,000–$15,000 | Shell + bathroom + kitchen + US electrical |
| Full residential (this spec) | $13,000–$18,000 | Full 2BR interior + NEC electrical + all fixtures |
| Premium/luxury interior | $18,000–$25,000 | High-spec finishes + smart home + solar ready |
All-In Landed Cost for US Buyers
| Cost Component | Low Estimate | High Estimate |
|---|---|---|
| Ex-factory unit (full fit-out) | $13,000 | $18,000 |
| Ocean freight (China → US port) | $3,500 | $5,500 |
| Inland trucking (port → site) | $600 | $3,500 |
| Foundation (screw pile or slab) | $3,000 | $10,000 |
| Building permits + engineering | $1,500 | $7,000 |
| Utility connections | $2,000 | $10,000 |
| Total all-in USA | $23,600 | $54,000 |
Most standard US residential projects land between $28,000–$45,000 all-in — 55–70% less than a comparable traditionally-built 2-bedroom structure.
Who Is This 20ft Expandable Container House Built For?
The 2-bedroom 20ft expandable container house for sale USA serves four primary US buyer profiles:
Backyard ADU / Granny Flat
The 2-bedroom layout fits within the ADU size limits of California (1,200 sq ft max), Texas, Oregon, and most US states. Perfect for housing a family member, generating rental income, or adding a home office + guest bedroom in one structure.
ADU income potential (2BR, suburban location):
- Monthly rental: $1,200–$2,500/month
- Annual income: $14,400–$30,000
- Payback on $40,000 all-in: 1.3–2.8 years
Airbnb / Short-Term Rental
A 2-bedroom expandable container house on a scenic lot generates premium nightly rates. The American standard exterior aesthetic — sandstone carved panels rather than raw corrugated steel — performs significantly better in Airbnb listing photographs and guest reviews.
Airbnb income (2BR, scenic location):
- Nightly rate: $150–$280/night
- 60% occupancy: 219 nights/year
- Annual gross: $32,850–$61,320
- Payback on $40,000: 0.7–1.2 years
Workforce Housing
Two bedrooms (4–6 occupants in shared configuration) in a single compact unit. No permanent foundation required in most rural US applications. Can be redeployed when the project moves.
Off-Grid Primary Residence
On rural unserviced land where traditional construction is impractical. Add solar panels (pre-wired inlet included) and water tank for a complete off-grid capable 20ft expandable container house USA installation.
US Building Permit: What This 2-Bedroom Configuration Needs
What UVO Provides (Documentation Package)
- IBC Chapter 16 structural engineering certificate (wind, snow, seismic)
- NEC-compliant electrical schematic and equipment list (UL-listed)
- Scaled floor plans (2D) for permit submission
- Elevation drawings (4 sides)
- Foundation load specifications for local engineer
Permit Requirements by Use Case
| Use Case | Permit Type | Key Requirements |
|---|---|---|
| Backyard ADU | Residential ADU building permit | IBC certificate + energy compliance |
| Airbnb / STR | Building permit + STR registration | Zoning confirmation + NEC electrical |
| Workforce housing | Temporary or permanent building permit | Depends on county and duration |
| Off-grid rural | County building permit (most cases) | Varies — many rural counties permissive |
Most US counties process building permits for compliant expandable container house installations in 4–12 weeks.
Frequently Asked Questions
How much does a 20ft expandable container house with 2 bedrooms cost in the USA?
Total all-in landed cost for a 2 bedroom expandable container house in the USA runs $23,600–$54,000 depending on specification, destination state, and site conditions. Most standard residential projects land between $28,000–$45,000. Ex-factory price for the full residential configuration with US NEC electrical is $13,000–$18,000.
Is the 20ft expandable container house big enough for 2 bedrooms?
Yes — at 37㎡ (398 sq ft) expanded, the 20ft expandable container house accommodates two bedrooms of approximately 10㎡ and 8㎡ respectively, plus living room, kitchen, and bathroom. This is comparable to a studio apartment in most US cities and perfectly functional for couples, parent/child households, or Airbnb use.
Does the 20ft expandable container house for sale USA comply with US building codes?
Yes — UVO's American standard configuration meets IBC structural requirements, NEC electrical standards, and ASCE 7 wind load specifications. We supply an IBC-compliant structural engineering certificate with every unit, required for US building permit applications.
Can I get a 20ft expandable container house delivered to any US state?
Yes — UVO ships to all contiguous US states via major ports: Los Angeles, Houston, Miami, Seattle, New York, and Savannah. Inland trucking is arranged to your site. Total transit time from factory to most US locations: 7–11 weeks.
Does the electrical system need to be rewired for US use?
No — UVO's American standard expandable container house is factory-wired to NEC / NFPA 70 specifications with UL-listed components, US 120V/240V voltage, and standard US 3-prong Type B sockets throughout. The only on-site work required is connection to your local utility service by a licensed US electrician.
Can a 20ft expandable container house be used as an ADU in the USA?
Yes — the 2-bedroom 20ft expandable container house at 37㎡ (398 sq ft) fits within ADU size limits in California (1,200 sq ft max), Texas, Oregon, Florida, and most other US states. UVO's IBC structural certificate and NEC-compliant electrical documentation support ADU building permit applications.
What foundation does a 20ft expandable container house need in the USA?
Three options: concrete slab (most widely accepted for permanent use), helical screw piles (fastest installation, ideal for sloped sites), or concrete perimeter footings. Foundation type depends on your local building department requirements and soil conditions. UVO provides foundation load specifications to share with your local engineer.
Ready to Order Your 20ft Expandable Container House for the USA?
UVO ships 20ft expandable container houses — American standard, 2-bedroom configuration — factory-direct to all US states. Full IBC structural certificate, NEC-compliant electrical, and US permit documentation package included.
